SY-338SP is used for through hole components soldering and rework soldering.Equipped with motor protection circuit, motor would not run if solder pot temperature do not reach setting value.High precision digital temperature controller for temperature setting and display, temperature control precision can reach ±1℃.

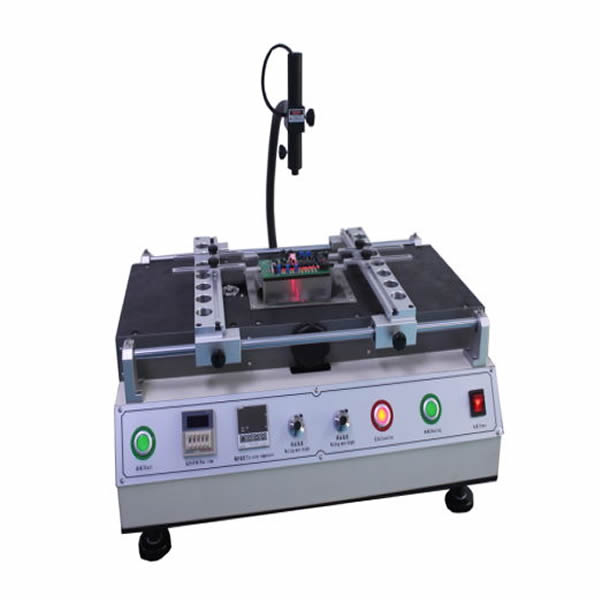

Entry Selective Soldering Machine SY-338SP Features
| ● Automatic PCB Clamping.High precision digital temperature controller for temperature setting and display, temperature control precision can reach ±1℃. |
| ● Wave soldering time can be set . |
| ● Wave soldering height can be set . |
| ● Equipped with motor protection circuit, motor would not run if solder pot temperature do not reach setting value. |
| ● Equipped with stainless steel solder pot . |
|
● Various soldering nozzle is choosable to meet different process requirement. |
|
SY-338SP - Specifications |
|
|
Solder pot capacity |
15KG |
|
Wave solder height |
50mm |
|
Temperature control |
100~450 ℃ |
|
Heater power |
1200W |
|
Soldering time control |
1~60S |
|
Power Supply |
220V50HZ |
|
Product size |
L600*W400*H280mm |
|
Net Weight |
40KG |
Entry Selective Soldering Machine SY-338SP Options
◎ PCB bracket.
◎ Cooling fan.
◎ Laser positioning device.
◎ Soldering nozzle

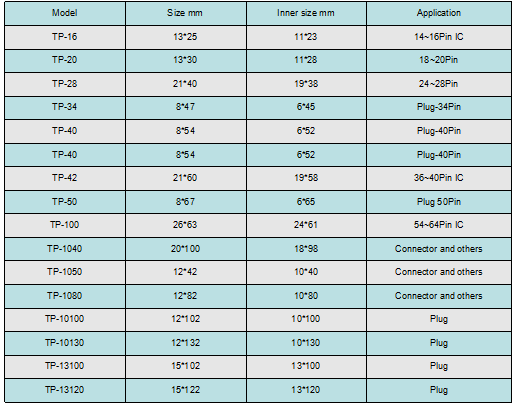

Optional nozzle specification
