Solder Outfeed Conveyor
Conveyor Series
- Call us now: (+86)0769-85303739
- Email: sales@1clicksmt.com

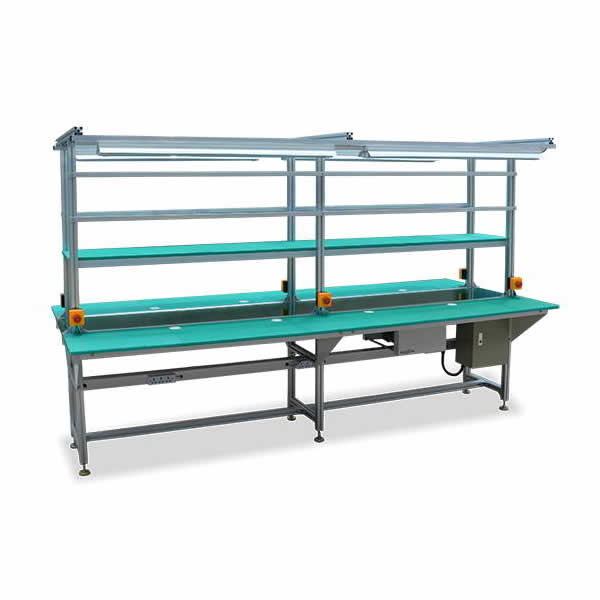

ESD belt conveyor series
The Belt conveyor adopt quality motor with invertor controller,quality belt and driving mechanism, ensure smooth and low noise conveying, equipped with work table, instrument shelf, LED light, multifunction socket, it is very suitable for electronicproduction assembly line.
Available Options
ESD Belt Conveyor BC 3000 Features
|
● Aluminum conveying guide rail. |
|
● 400mm width ESD belt. |
|
● Conveying motor driven by invertor. |
|
● Equipped with LED light. |
|
● Equipped with multifunction socket. |
|
● Equipped with process card bracket. |
|
● Equipped with tool storage plate. |
ESD Belt Conveyor BC 3000 Specification
|
●Transport height: |
750mm ±30mm or Specify |
|
●Transfer direction |
Left to right |
|
● Operation side |
2 sides of the machine |
|
● Conveyer concept |
ESD belt |
|
● CBelt speed |
0-5m/min adjustable |
|
● Power supply |
230 VAC/50 Hz/1 Ph |
|
● Power consumption |
400VA max. or specify |
|
Model |
BC-3000 |
|

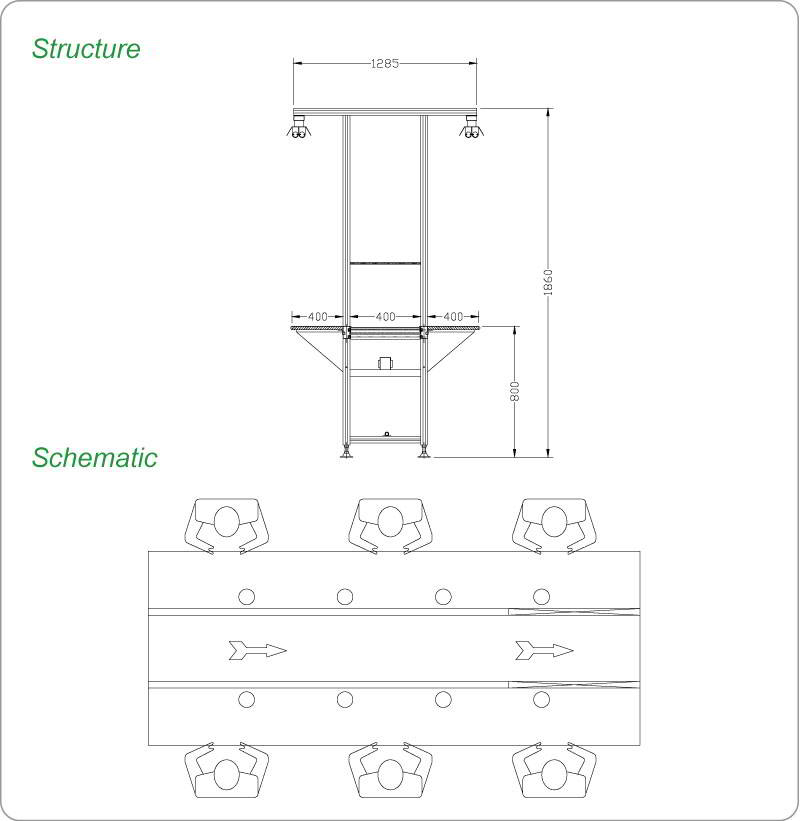

Machine Dimension (L x W x H) |
3000 x 1285 x 1860 |
|
Weight |
85kg |
|
PCB width |
Max 400mm |
* Customized is available
ESD Belt Conveyor BC 3000 Options
|
● Manual stop switch button. |
|
● ESD ground socket. |
