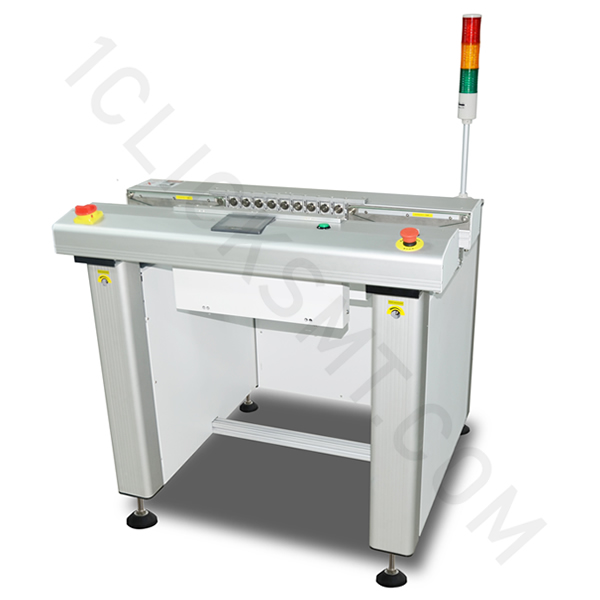

High Version Reject Conveyor Series
The unit installed after AOI for separated NG board for visual inspect and good board will pass through without stopping.
Available Options
High Version Reject Conveyor Series Features
|
● Pannasonic PLC Program control. |
|
● Start / Stop push button. |
|
● Anti-static conveyor belt. |
|
● Centre PCB stop position. |
| ●Touchscreen control pannel. |
|
● Easy way of belt replacement. |
|
● Reject and by-pass mode selectable. |
|
● Heavy bottom design to prevent shifting. |
|
● PCB precise stopping in position. |
|
● Smooth and parallel width adjustment.(lead screw). |
|
● SMEMA compatible. |
High Version Reject Conveyor Series Specifications
|
● Transport height: |
910mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD flat belt |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
| ●Components clearance: | Bottom 30 mm or specify |
|
● Power supply： |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
100VA max. or specify |
| ● Load bearing: |
1.5kg/PCB. |
|
● Buffering capacity: |
1 PCB or specify. |
Standard lengths (B) : 500 , 600 , 1000 , 1500 , 2000 .
|
Model |
CYCX330L (B) |
CYCX460XL (B) |
|

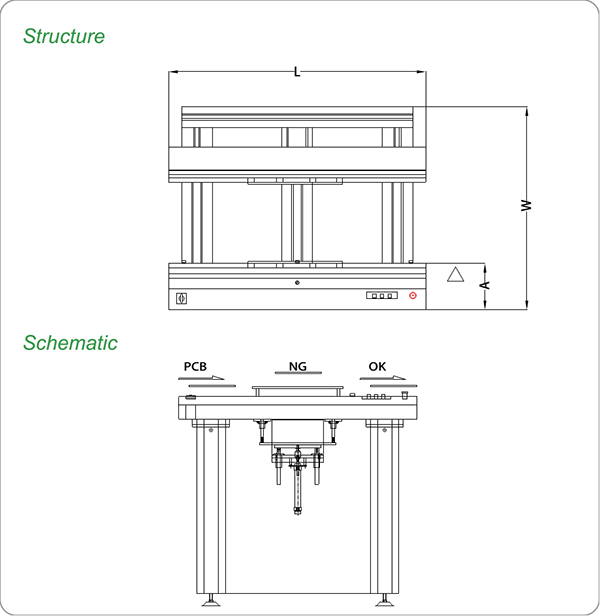

Machine Dimension (LxWxH) |
(B)x750x960 |
(B)x880x960 |
|
Weight |
70-100kg |
90-130kg |
|
PCB length |
50mm-445mm |
50mm–530mm |
|
PCB width |
50mm-330mm |
50mm–460mm |
|
PCB Thinckness |
0.6mm–4.5mm |
0.6mm–4.5mm |
|
Fixed rail to front dimension(A) |
180mm |
180mm |
* Customized is available
High Version Reject Conveyor Series Options
|
● Automatic width adjustment (set in touchscreen) |
|
● Light fixture with tower light |
|
● Additional lift positions for extra buffer capacity. |
| ● Other options available on request. |
