Inspection Conveyor Series

init sku time:

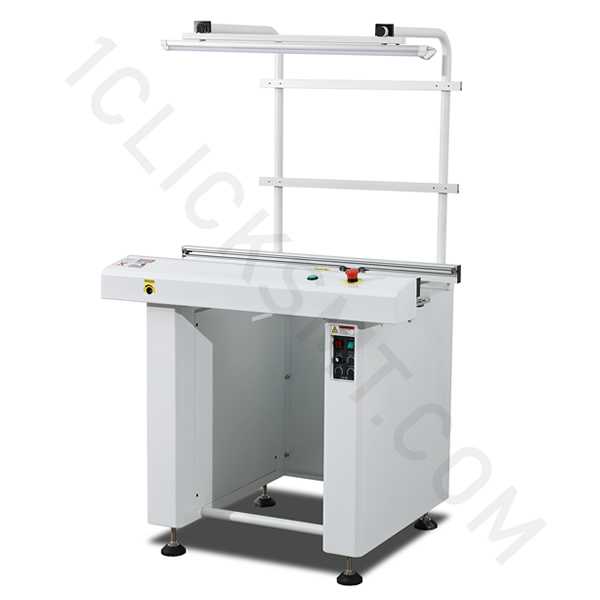

The inspection conveyor is used when frequent visual inspection of PCB's is required in the PCB assembly line.

Available Options

Inspection Conveyor Series Features

● Pannasonic PLC Program control.

● Overhead LED lighting.

● Start / Stop push button.

● Anti-static conveyor belt.

● Centre PCB stop position.

● Easy way of belt replacement.

● Work and by-pass mode selectable.

● Heavy bottom design to prevent shifting.

● PCB precise stopping in position.

● Smooth and parallel width adjustment.(lead screw)

● SMEMA compatible.

Inspection Conveyor Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD flat belt

● Belt speed:

0.5-20m/min adjustable

● PCB edge support:

3mm

●Components clearance: Bottom 30 mm or specify
● Power supply：

230 VAC/50 Hz/1 Ph

● Power consumption:

120VA max

●Load bearing: 1.5kg/PCB

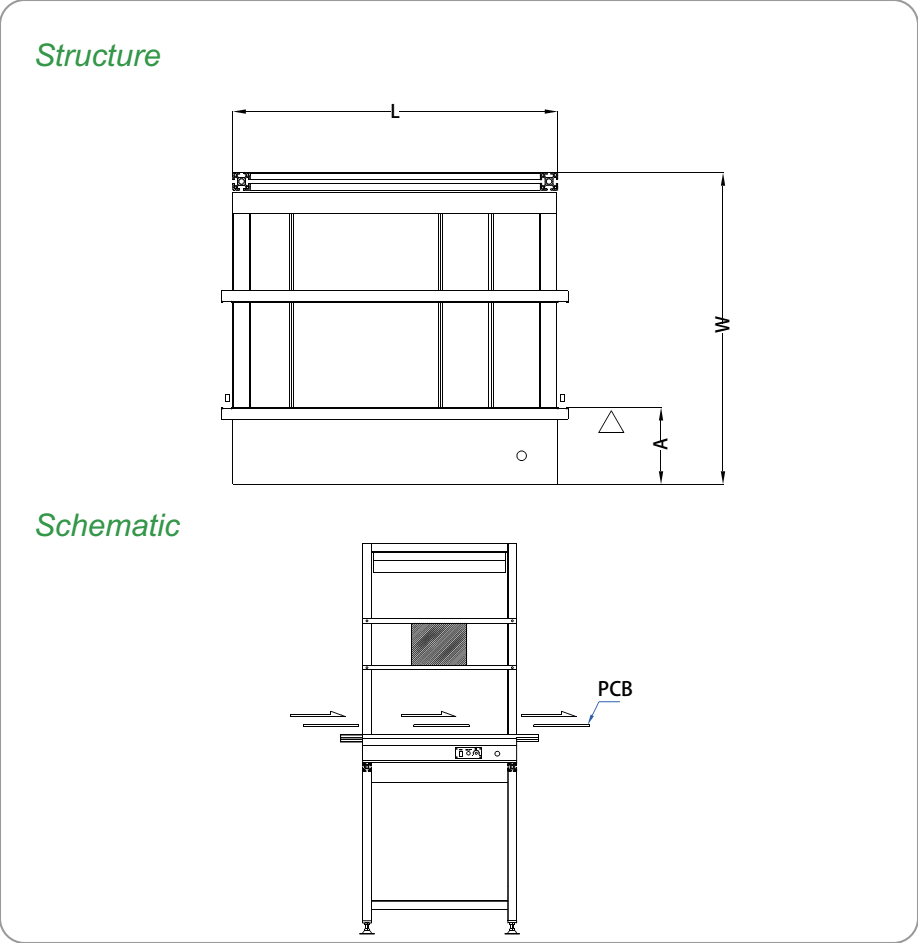

Inspection Conveyor.png

Standard lengths (B) : 500 , 600 , 1000 , 1500 , 2000 .

  Model

  CYB330L (B)

  CYB460XL (B)

  Machine Dimension (LxWxH)

  (B)x750x920

  (B)x850x920

  Weight

  70-100kg

  90-130kg

  PCB length

  50mm-445mm

  50mm–457mm

  PCB width

  50mm-330mm

  50mm–460mm

  PCB Thinckness

  0.6mm–4.5mm

  0.6mm–4.5mm

  Fixed rail to front dimension(A)

  230mm

  230mm

* Customized is available

Inspection Conveyor Series Options

● Non standard conveyor / segment lengths.

● Eelectrical width adjustment.

● Dust cover.(customized length)

● Cooling system.(0.5m long 4 fans / 1m long 8 fans or specify)

● Other options available on request.
