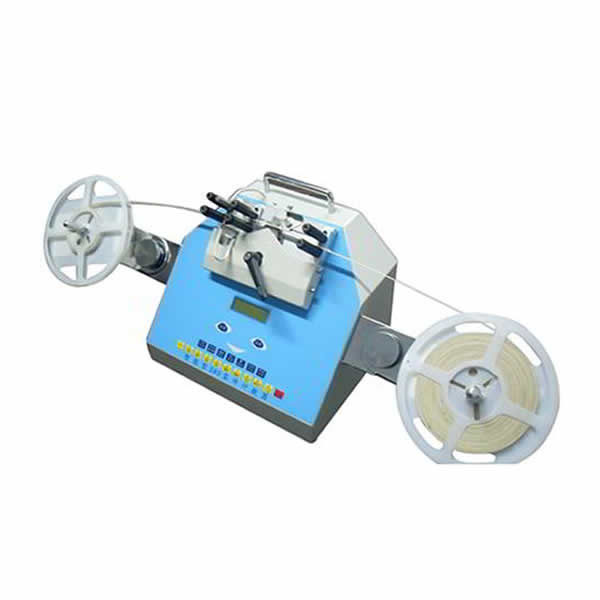

Intelligent SMD Counter YX-881 882
Fast, accurate component counting with Pocket Check missing part/empty pocket detection.
Available Options
YX-881 882 Intelligent SMD Components Counter Features
|
● Can fit optional Label Printer and scanner. |
|
● High power, no noise when stopping the machine. |
|
● Real-time detection to predict Start or Stop in advance. |
|
● Component lost detection functionfrom running is choosable.(YX882 Included) |
|
● Zero part shortage, zero overshoot, and zero error when issuing part. |
|
● Traditional functions are included but further optimized and upgraded. |
|
● Both forward and backward counters are available for accurate part counting. |
|
● Two arms are retractable; Count speed adjustable; Counts all SMD taped components. |
|
● Eight speeds are available from its governor for easy speed selection based on different tray sizes. |
|
● Equipped with quality sensor, be able to detect if discharge tray is empty or not accurately for customers’ more precise part-counting. |
|
● No manual intervention is needed to the reelparts. Machine will stop automatically when no part is available, so no press is needed on Stop button. Machine will stop automatically when part conveyer runs out of part, so part will not be in short supply at any time. |
|
● Wide counting range with maximum 24-bit BUS and a number of up to 16777216. Suitable for extra-large SMD reelparts and non-SMD reel parts. |
|
YX-881 882 - Specifications |
||
|
Model |
YX-881 |
YX-882 |
|
Electric Load |
90W |
|
|
Count Capacity |
- 16777216~16777216pcs |
|
|
Electric Power |
AC110V(60HZ) / AC220V(50HZ) |
|
|
Outer Dimension L×W×H(mm) |
L490*W280*H280mm |
|
|
Weight |
10 Kg |
|
|
Rill derailment protection device |
Not Included |
Included |
Optional
◎ Bar code printer and scanner.
◎ Scanner
Application
◎ Suitable for extra-large SMD reel parts and non-SMD reelparts
◎ Reel diameter: assorted sizes are usable
◎ Reel Width: 8, 10,12, 16, 24, 32, 44 ,56
◎ Reel Pitch: 2, 4, 8, 10, 12, 16, 24, 32, 44, 56
