23,300CPH chip (Laser centering/Optimum) 18,300CPH chip (Laser centering/ IPC9850) One multi-nozzle laser head (6 nozzles) From 0603(0201) to 33.5mm square components

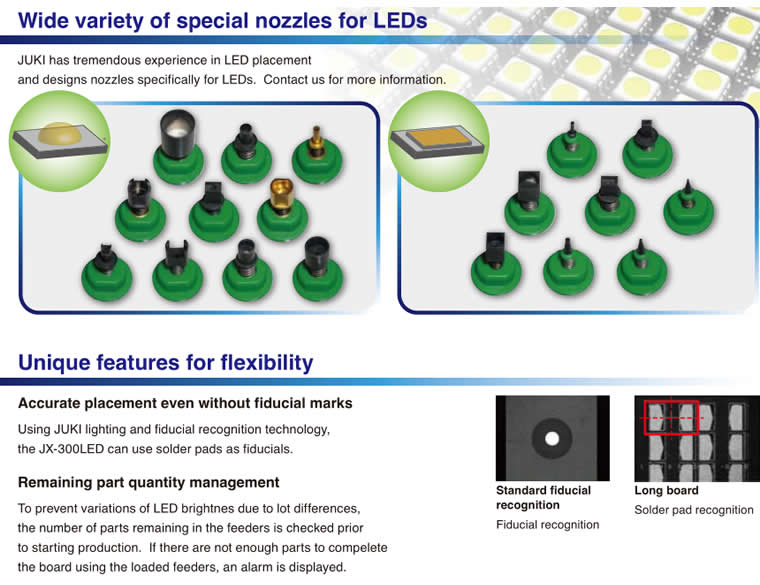

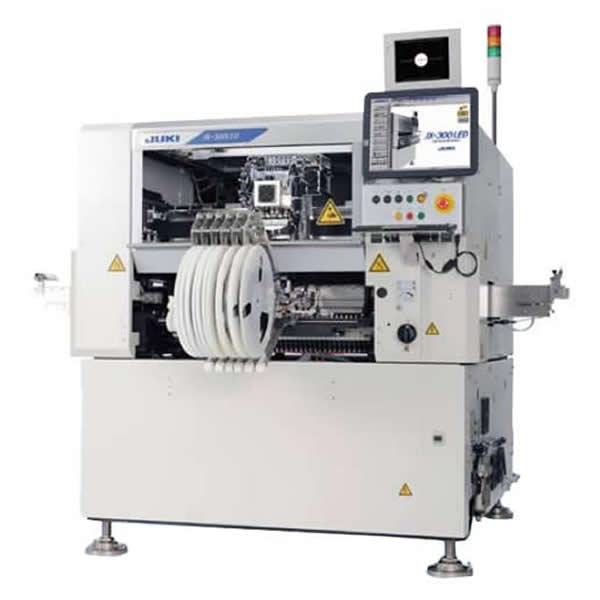

JX-300 LED Catalogue Specification | |||
Item | JX-300 LED | ||
Board size | standard specification | 50×50～1,200×360mm | |

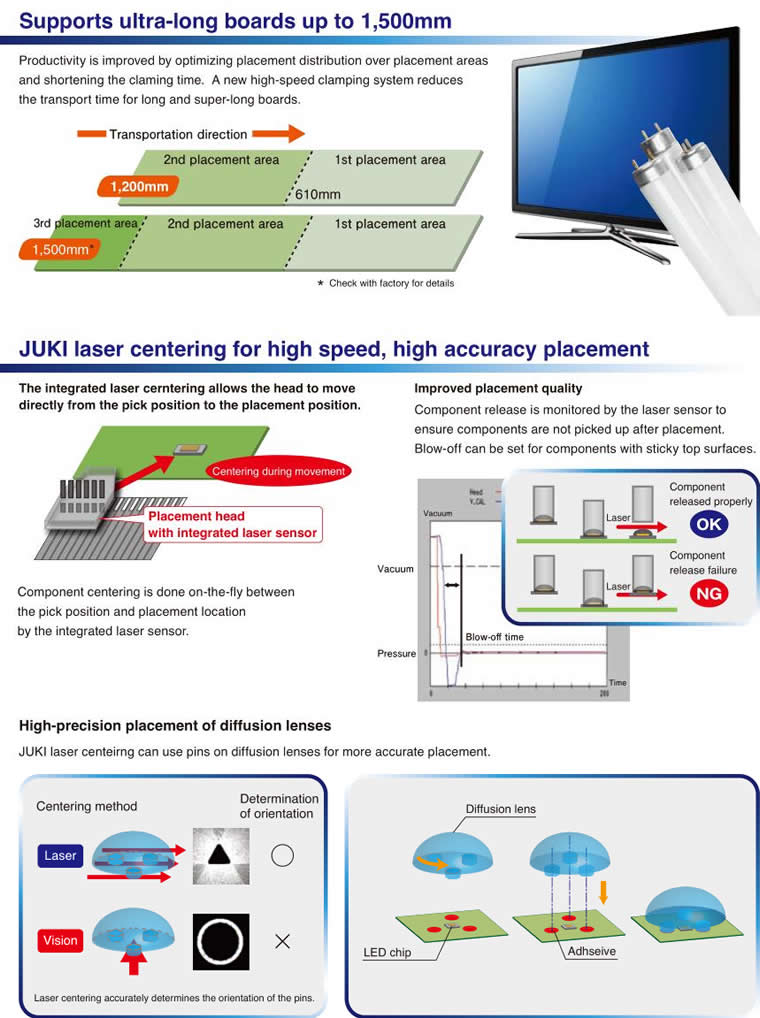

| Longer sized PWB ※1 | 50×50～1,500×360mm | ||
Component height | 6mm/12mm | ||
Component size | Laser recognition | 0603(0201)～33.5mm | |
Placement speed | Optimum | 23,300CPH | |
| IPC9850 | 18,300CPH | ||
Placement accuracy | ±0.05mm(Cpk≧1) | ||
Feeder inputs | Max.40 in case of 8mm tape | ||
Power supply | 200 to 415 VAC, 3-phase | ||
Apparent power | 3.0kVA | ||
Oparating air pressure | 0.5±0.05Mpa | ||
Air consumption | 345L/min(Opt.:Vacuum Pump 50L/min) | ||
Machine dimensions(W×D×H)※2 | 1,920×1,393×1,440mm | ||
Mass(approximately) | 1,420kg | ||
※1 Long board support is optional. | |||
※2 When equiped with the long board option, the machine width is 2,520mm. | |||
JX-300LED Options | |||
Recognition system | HMS(Height Measurement System) / Bad mark reader | ||
Operation system | Touch panel / HOD / Feeder position indicator | ||
Conveyor | Applicability to long PWB(1,500mm) ※1 / IN・OUT buffer / Support table ※1 Automatic board width adjustment | ||
Electrical protection | Ground-fault interrupter / UPS | ||
Others | FCS calibration jig / Super foot / Caster / Vacuum Pump Solder lighting / Component quantity control | ||
Software | EPU | ||
Component handling and feeders | Tape feeder(8～72mm)/ Bulk feeder/ Stick feeder Matrix Tray Server TR5 ※2 /TR5S attachment kit ※2 /Tray station ※3 Trash box /Splicing jig /Tape reel mounting base /Feeder stocker Feeder Calibration Jig with Monitor | ||
※1 Check with factory for details. | |||
※2 TR5S installation kit is required to use the TR5S matrix tray server. | |||
※3 Tray station is required to use the tray holder on rear side. | |||
※Please refer to the product specification for details. | |||
