The Max load capacity of this automatic guide vehicle is 50kg. After loading the materials by hand or industrial robot, the AGV can automatically drive to the feeding point entire transport process bar and the location setting.The entire transport process needn't human intervention. The operation is simple and the AGV doesn't conflicts with other units in logistics system. The AGV uses laser navigation, precise positioning, no need to lay magnetic strips and QR codes, fast and convenient installation, and can quickly adjust the movement track according to scene changes. Flexible and convenient to use.
|
Laser Navigation AGV Features: |
|
1. Natural navigation: laser navigation, based on natural trackless navigation technology, without scene modification, to achieve accurate positioning and navigation of AGV. |
|
2. Handling capacity: maximum 300KG load. |
|
3. Stable and efficient: Adopt industrial-grade devices, electrical modules, electromechanical structure to achieve 7 * 24 hours of continuous and reliable work. |
|
4. Rapid deployment: Automatically generate environment maps, realize dispatching planning services, and build a maximum of 30000m2. |
|
5. Safety guarantee: multi-sensor obstacle avoidance, providing obstacle detection, collision detection, emergency braking and other multi-level safety protection. |
|
6. Reliable communication: Intelligent wireless communication network and management system complete the communication function, industrial-grade wireless WIFI, support AP, AC. |
|

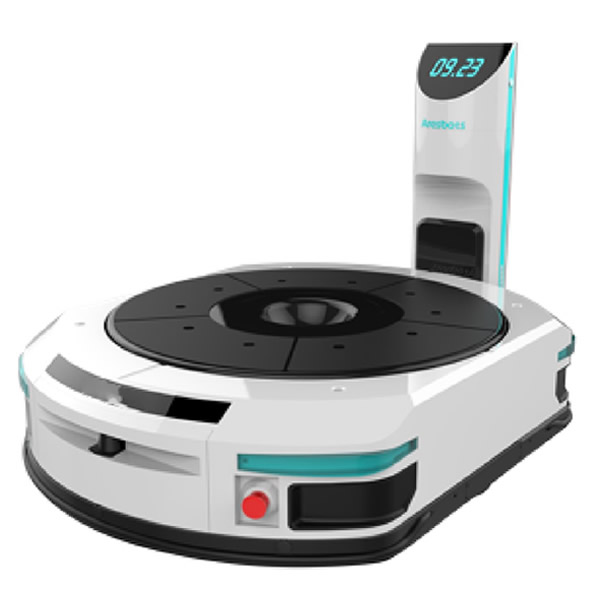

Laser Navigation AGV SY-300B specification: |
||
|
Model |
SY-300B |
|
|
Basic performance |
DImension: L; W; H | 850*600*560mm |
| Selt weight | 130KG | |
| Load capacity | 300KG | |
|
Running parameters |
Max running speed | 1.67m/s |
| Running speed | Go forward:1.34m/s Go backward:0.3m/s | |
| Radius of gyration | 484mm | |
| Gradeability | 3degrees | |
| Obstacle height | 10mm | |
| Across the width of the gap | 30mm | |
| The gap off the ground | 25mm | |
| The width of the walkway | Min700 mm | |
| Turning channel width | Min1130 mm | |
| Site positioning accuracy | ±10mm | |
|
Battery performance |
Battery capacity | 51.2V 30Ah |
| Full charge running time | 8h | |
| Charging way | Automatic, manual | |
|
External interface |
Charging time | 1 hour |
| Power outlet | 2 road DC51.2V 1000W (40~57.6） | |
|
Optional |
Standard communication interface | RS232*1 CAN*1 |
| I/O | Standard communication interface | |
| Current output | 2 road DC24V 20W | |
| The tail obstacle avoidance | Multipoint laser obstacle avoidance | |
| Visual positioning | RGB-D ,End positioning accuracy increased to ±5mm | |
|

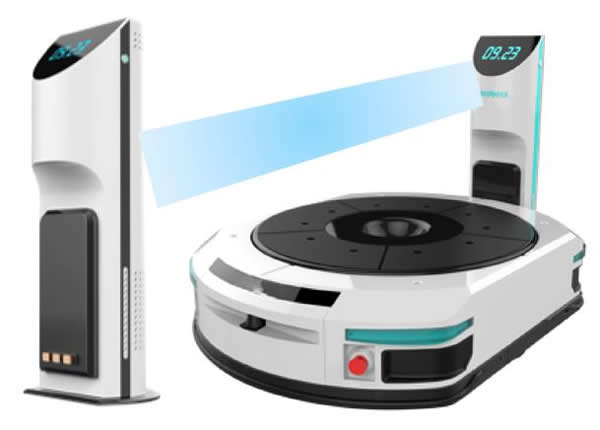

Laser Navigation AGV automatic charging station: |
|
|
Functional advantages: ● Intelligent automatic charging. ● Small size and high efficiency. ● Industrial design, safe and reliable. |
|
|
Specifications: ● Voltage：220V ● Quick charge: 60 minutes full |
|
|
Scheme design-configuration list: |
|||||
|
No |
Name |
Model |
Product description |
Quantity |
Unit |
|
1 |
AGV |
SY-300B |
300KG laser navigation + roller |
1 |
pcs |
|
2 |
Charging station |
ACS-1900 |
Charging Station |
1 |
pcs |
|
3 |
server |
Server-Standard |
Recommended models: 2 dual hot standby, DL388Gen9 E5-2600v4 series models Single 2609V4 8 core 1.7G Configuration requirements: 2 dual hot standby, 8 core, 16G, 500G SSD hard drive, Gigabit network card |
1 |
pcs |
|
4 |
PC |
ThinkCentre E74-10KS000CC |
Computer-Desktop-Lenovo ThinkCentre Series Desktop |
1 |
pcs |
|
5 |
PDA |
X5A-304WLM |
Xiao Bang-X5A-304WLM 2D |
1 |
pcs |
|
6 |
Control software |
Control Software |
Standard Edition for scheduling and controlling AGV movements |
1 |
set |
|
7 |
Wireless Controller |
EWP-WX2540H |
H3C WX2540H-EWPXZ12540H-6 port Gigabit (5GE-T + 1SFP) wireless controller |
1 |
pcs |
|
8 |
switches |
LS-S5110-28P-PWR |
Ethernet switch, 24 Gigabit POE network port, 4 Gigabit optical port |
1 |
pcs |
|
9 |
Wireless AP |
EWP-WA4320-ACN-FIT |
Wireless AP, support POE, 802.11ac /n |
1 |
pcs |
|
10 |
Wireless AP license |
LIS-WX-8-BE |
Wireless controller license, 8 |
1 |
set |
|
11 |
Weak current cabinet |
TS.6022 |
Computer peripherals-cabinet-600 * 1000 * 1255 server cabinet-hexagon mesh front door |
1 |
pcs |
