Lead Free Reflow Oven M6/M8

init sku time:

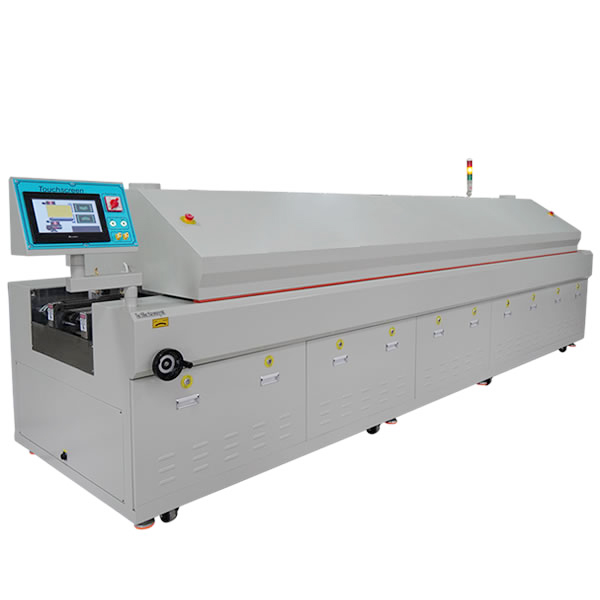

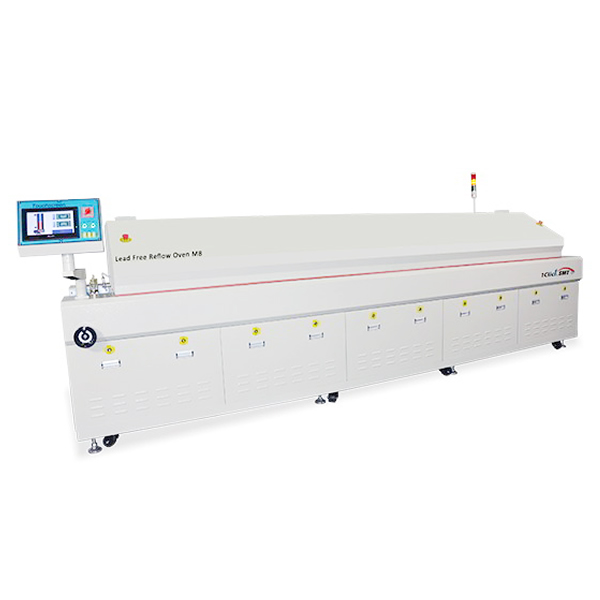

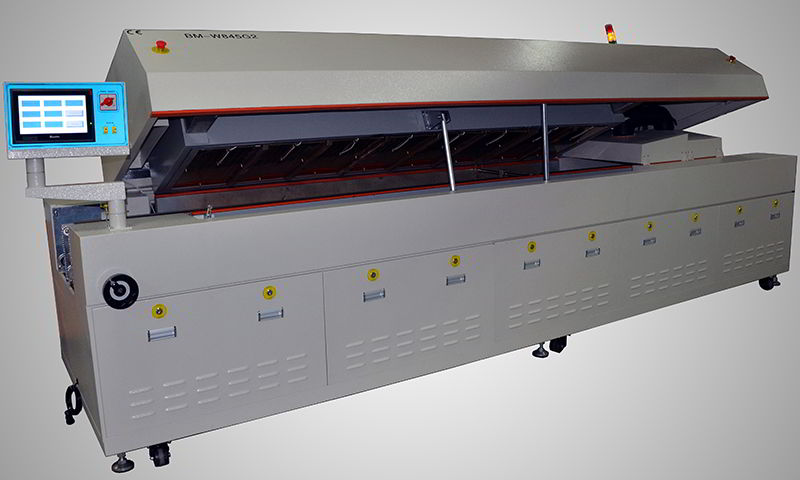

M6/M8 is a capable lead free CE certificated reflow oven with 6/8 upper & 6/8 bottom invidual hot air convection zones, pin chain & mesh belt inline conveyor. with accurate and uniform temperature, it can keep pace with volume production.

Available Options

Machine's cover can be easily lifted up

M6/M8 Lead Free Reflow Oven General

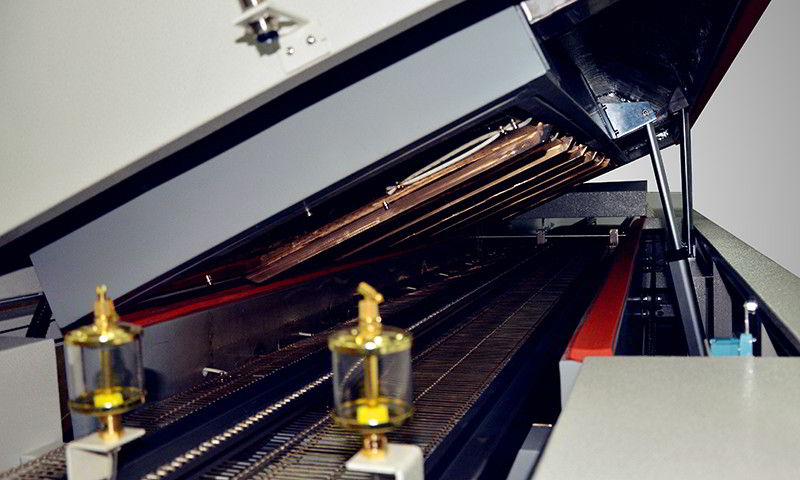

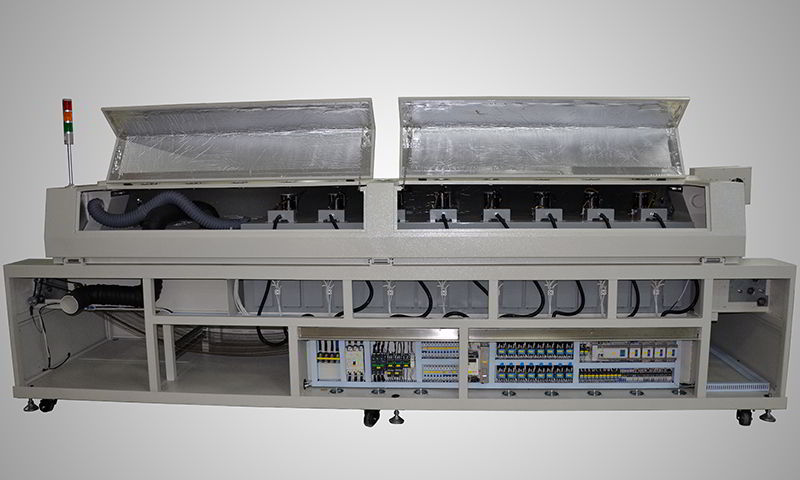

Machine's cover can be easily lifted up by electrical screw. Much safer solution, no need air supply.

Chain and mesh belt conveyor

M6/M8 Lead Free Reflow Oven General

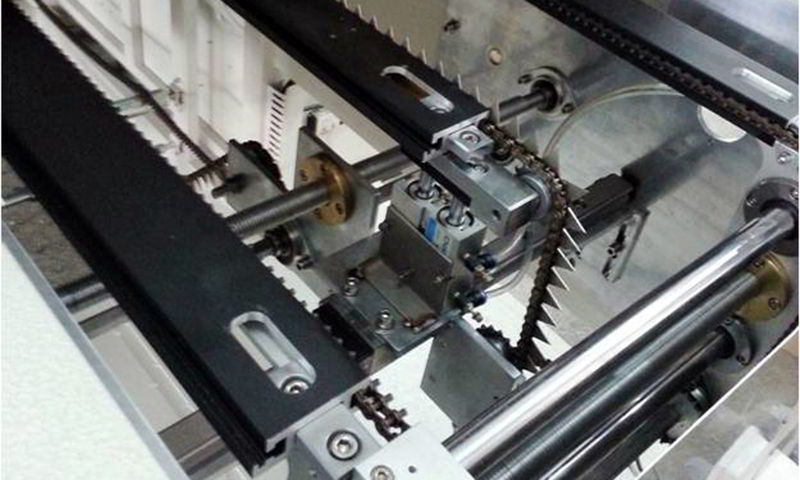

Chain and mesh belt conveyor, all rail has been harden-treated to stand the wear by chain, meanwhile standard equipped with lubrication cup.

Optional to be with center board support

M6/M8 Lead Free Reflow Oven General

Optional to be with center board support system for wide PCB.

Latest self-designed porous plate

M6/M8 Lead Free Reflow Oven General

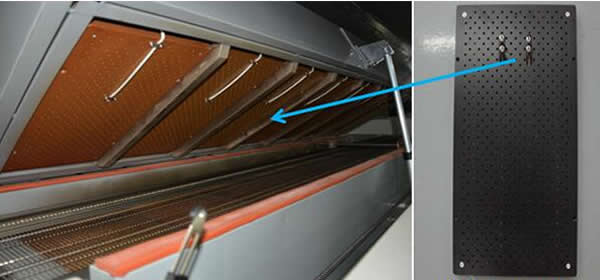

Latest self-designed porous plate, get best uniform hot air distribution under the theory of static pressure. New designing: aluminum heating plate +U shape heating tube, more stabile and longer service life.

Upper 68 zonesbottom 68 zones hot air convection

M6/M8 Lead Free Reflow Oven General

Upper 8 zones/bottom 8 zones hot air convection latest CE certificated high temperature resistant motor.

Cooling system

M6/M8 Lead Free Reflow Oven General

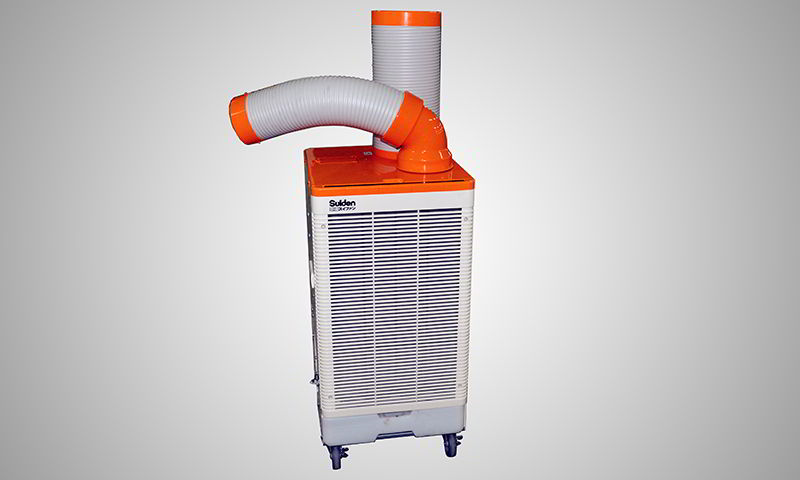

Industrial cooler for cooling system, provide powerful cold wind. For BM-W645G2 it's 1 cooling zone, for BM-W845G2 it's 2 cooling zones.

M6/M8 Lead Free Reflow Oven Conveyor

M6/M8 Lead Free Reflow Oven General

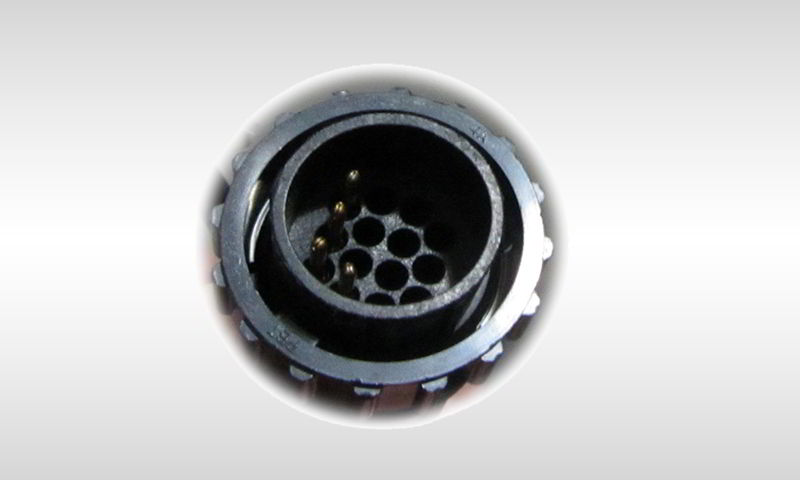

Standardly equipped with SMEMA connector for inline production.

Controlling

M6/M8 Lead Free Reflow Oven Controlling

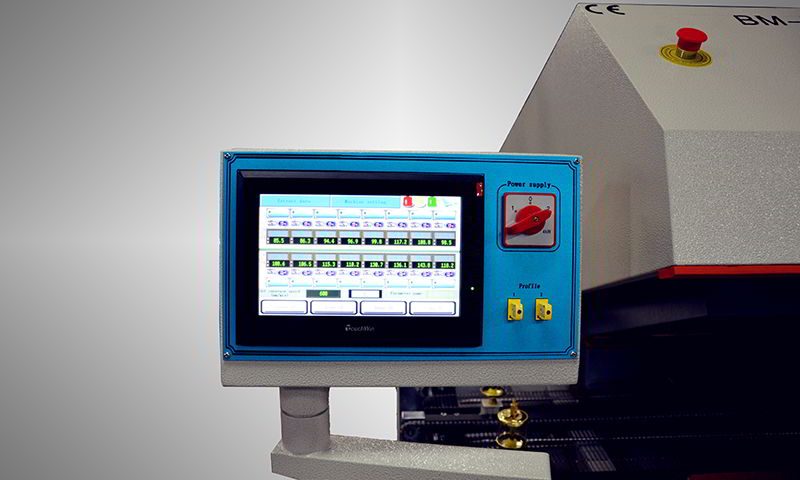

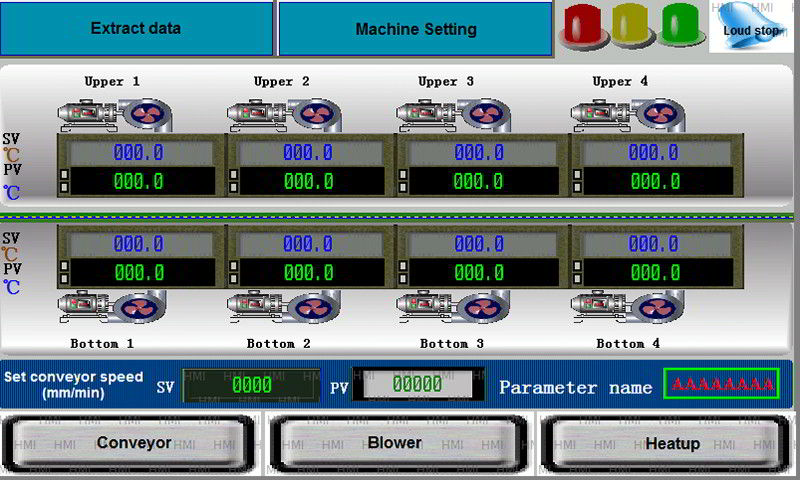

Colored touchscreen interface with PLC controller ensure stable operation of machine.

Easy for conveyor speed calibration

M6/M8 Lead Free Reflow Oven Controlling

Easy for conveyor speed calibration in software.

M6/M8 Lead Free Reflow Oven Controlling

M6/M8 Lead Free Reflow Oven Controlling

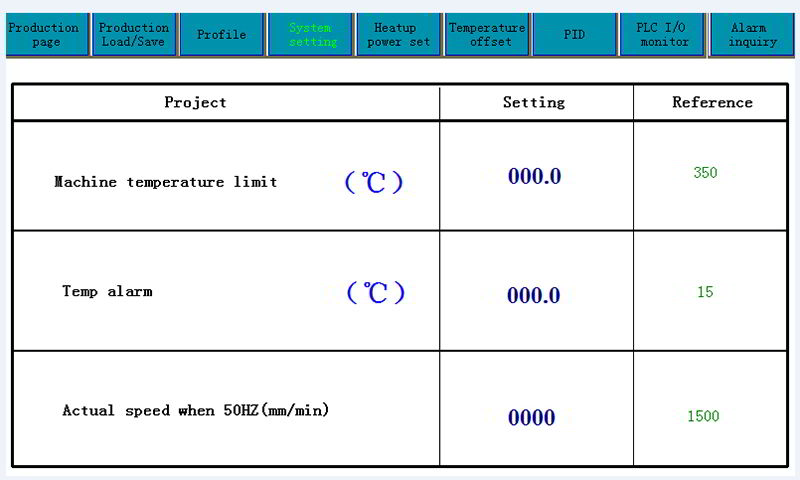

Full English interface, easy to be operated which can stock more than 50 groups parameters with recommended leaded/leaded free temperature/speed setting before machine be delivered. You can master how to operate it within 10 minutes.

M6/M8 Lead Free Reflow Oven Controlling

M6/M8 Lead Free Reflow Oven Controlling

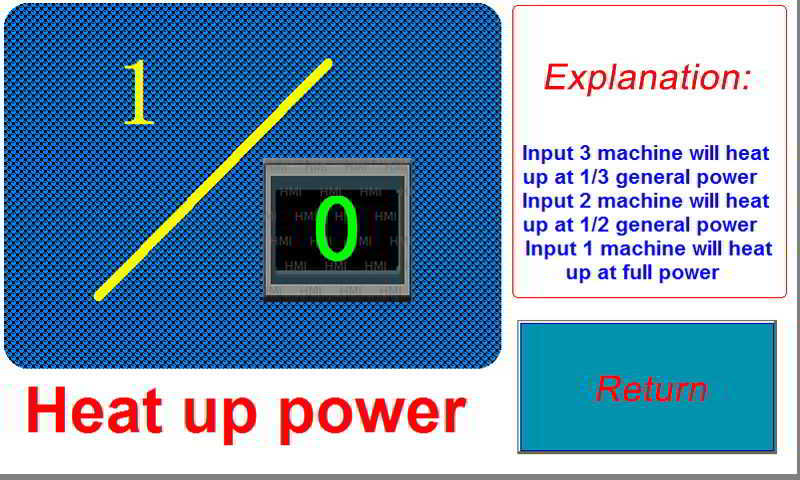

Unique program design can adjust the start power consumption and lower the start current. Best choice for customer with limit power supply.

Upper 68 zonesbottom 68 zones hot air convection

M6/M8 Lead Free Reflow Oven Electrical

The whole machine was built under CE instruction.

Schneider  Converter

M6/M8 Lead Free Reflow Oven Electrical

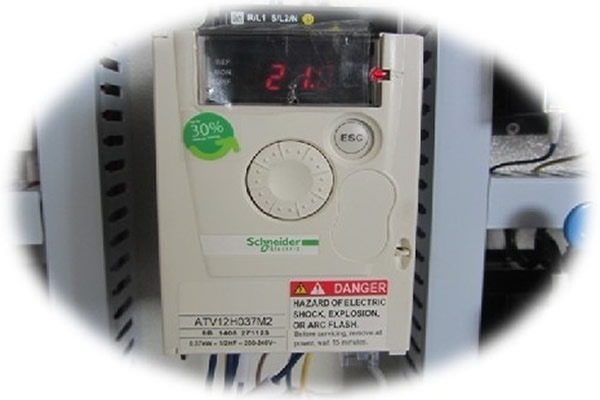

Schneider Converter

Mitsubishi  Breaker

M6/M8 Lead Free Reflow Oven Electrical

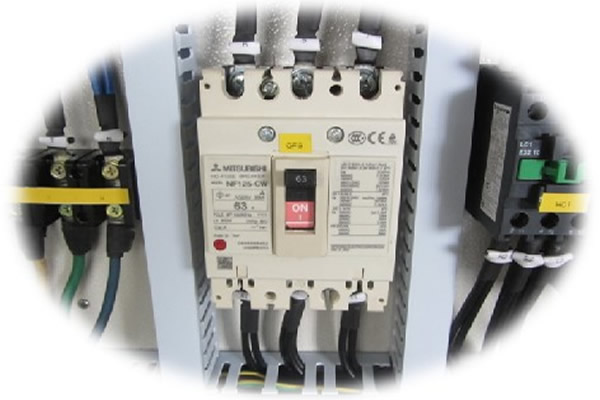

Mitsubishi Breaker

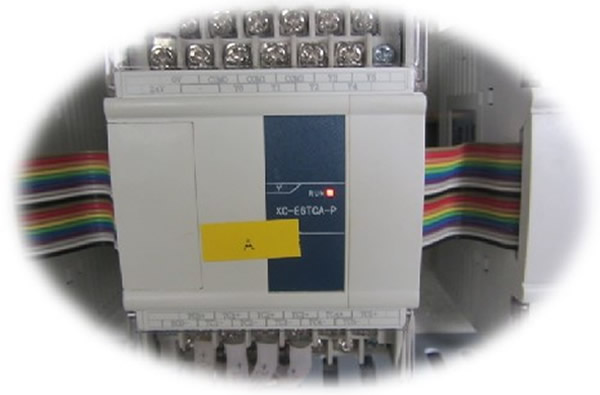

PLC (Made In Taiwan)

M6/M8 Lead Free Reflow Oven Electrical

PLC (Made In Taiwan)

Profile

M6/M8 Lead Free Reflow Oven Profile

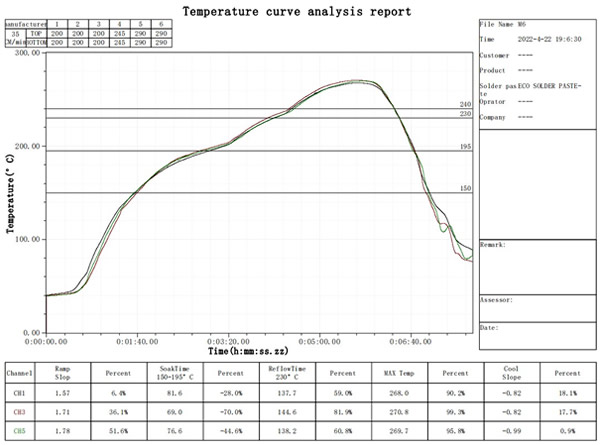

After calibration & test, our reflow oven is acceptable by IPC Standard completely.

M6/M8 Lead Free Reflow Oven Features

●   Streamline shape design make the oven looks great. Touch screen and plc controlling system. It can save 50 groups temperature parameters and provide extra 2 ports for profile testing.

●   The software has the functions like, temperature setting and editing, PCB parameter menu, and profile testing, alarms and multi-languages conversion.

●   High quality Brand electrical component ensures long serive life. Meanwhile the CE certificated blower is specially design for lead-free reflow oven. It runs stable and lower noise.

●   Upper zone and hood can be opened by the electrical screw automatically. It is very convenient for cleaning and maintenance. Electrical pole will hold the upper zone andn cover, even when power is off suddently, the cover will not drop down. It's much safer than the air cylinder holder.

●   Specially designed Ni-Cr heater filaments, provide a very quick ramp up time. It takes just 15 minutes from ambient to setting temperature.

●   The inner tunnel of the oven is made of stainless steel which easy for cleans.

●   The entire upper and bottom zones are forced air convection; provide great temperature accuracy and uniform.

●   Stainless steel mesh belt and pin chain conveyor work together.

M6/M8 Lead Free Reflow Oven - Specification

  Model

  M6

  M8

  Heating zones

  Upper 6 zones

  Upper 8 zones

  Bottom 6 zones

  Bottom 8 zones

  Heating tunnel

  2050mm

  2673mm

  Dimension

  L3577*W1350*H1490mm

  L4650*W1350*H1490mm

  Net weight

  about 1100Kg

  about 1300Kg

  General power

  41KW

  53KW

  Power consumption

  Approx.6KW--8KW

  Approx.8KW--10KW

  Rising time

  25minutes

  25minutes

  Controlling type

  Touchscreen + PLC control

  Heating method

  Fully forced air convection

  Temperature controlling

  PID close-loop control, SSR drive

  Temperature range

  Ambient---350℃

  Temperature accurancy

  ±1℃

  Temperature uniform

  ±2℃

  Cooling

  1 cooling zones, air cooler for cooling, cooling length: 400mm

  2 cooling zones, 1 zone with cooling blower, 1zone with air cooler

  Conveyor method

  Mesh belt and chain conveyor

  Conveyor height

  900±20mm

  Mesh belt width

  450mm

  Max PCB width

  400mm

  Width adjustment

  Manual

  PCB clearance

  top30mm/bottom 30mm

  Conveyor direction

  Left to right

  Conveyor speed

  200-1000mm/min

  Hook lift

  Electrical screw pole

  Exhauting port

  ∅150mm*2

  Power supply

  380v,3ph,50hz

M6/M8 Lead Free Reflow Oven Includes:

●   Lead free reflow oven

●   6/8 independently controlled upper heating zones

●   6/8 independently controlled lower heating zones

●   1cooling zones with M6, 2cooling zones with M8

●   Mesh belt chain conveyor

●   Pin conveyor lubrication

●   Colored touch screen panel

●   1 year parts warranty

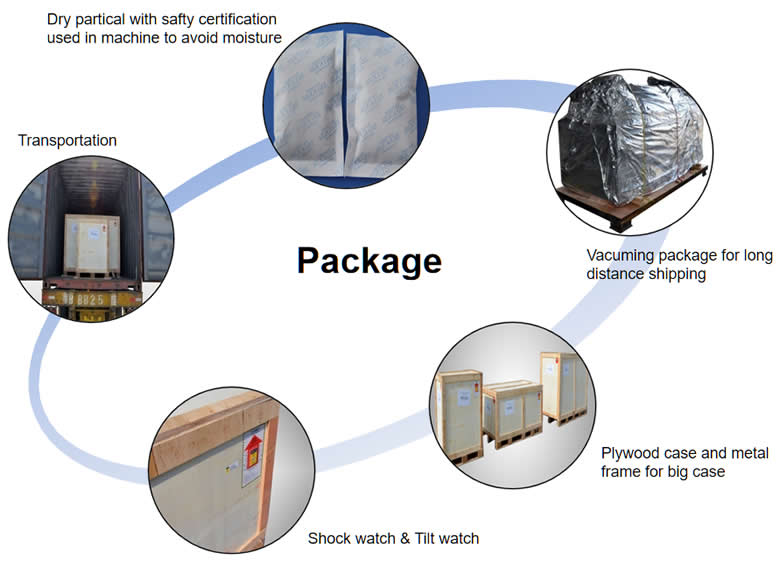

Package & shipping
