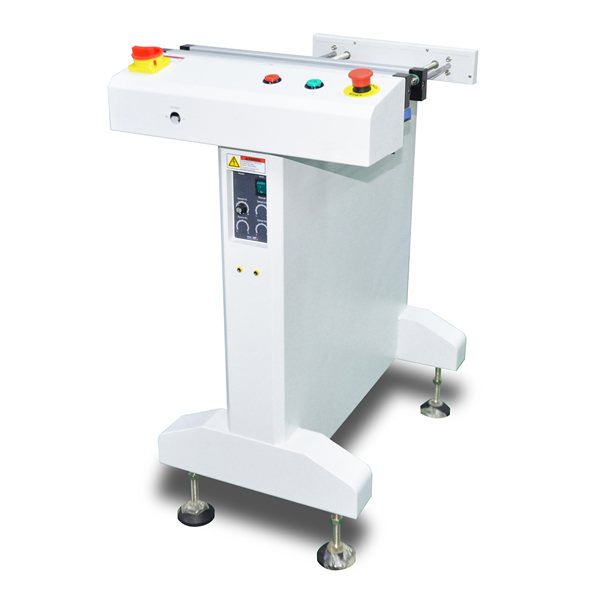

This unit is used to link between production machines or board handling units.
Linking Conveyor Series Features
|
● Pannasonic PLC Program control. |
|
● Start / Stop push button. |
|
● Anti-static conveyor belt. |
|
● Easy way of belt replacement. |
|
● Heavy bottom design to prevent shifting. |
|
● PCB precise stopping in position. |
|
● Smooth and parallel width adjustment.(lead screw) |
|
● SMEMA compatible. |
Linking Conveyor Series Specifications
|
● Transport height: |
900mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD flat bel |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
| ●Components clearance: | Bottom 30 mm or specify |
|
● Power supply: |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
100VA max. or specify |
| ●Load bearing: | 1.5kg/PCB |
Standard lengths(B): 500, 600, 1000, 1500, 2000.
|
Model |
CYA330L(B) |
CYA460XL(B) |
|
Machine Dimension (L x W x H) |
(B) x 710 x 920 |
(B) x 830 x 920 |
|
Weight |
50-80kg |
80-110kg |
|
PCB length |
50mm - 445mm |
50mm – 457mm |
|
PCB width |
50mm - 330mm |
50mm – 460mm |
|
PCB Thinckness |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
|

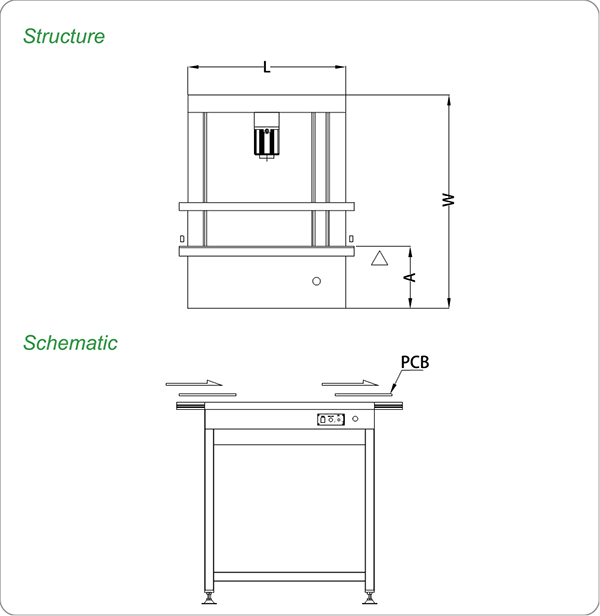

Fixed rail to front dimension(A) |
230mm |
230mm |
* Customized is available
Linking Conveyor Series Options
|
● Non standard conveyor / segment lengths. |
|
● Eelectrical width adjustment. |
|
● Dust cover.(customized length) |
|
● Cooling system.(0.5m long 4 fans / 1m long 8 fans or specify) |
|
● Other options available on request. |
