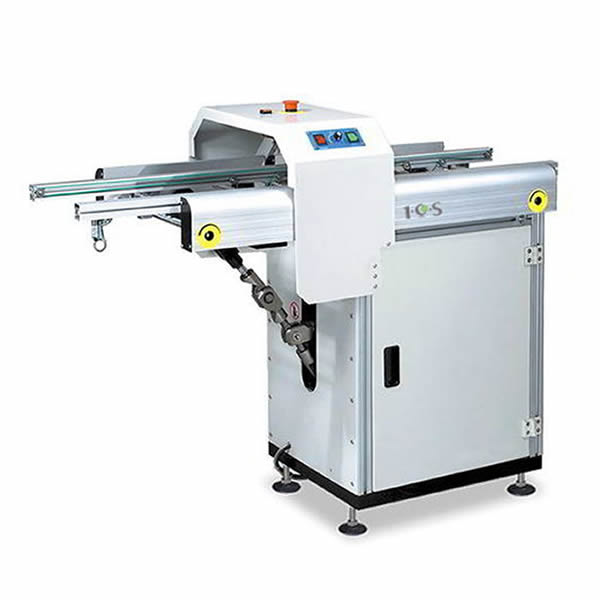

Lowering Gate Conveyor Series Features
● Pannasonic PLC Program control. |
● Locking cylinder to avoid opening during PCB transfer. |
● Ergonomic air pressure supported opening and closing. |
● Automatically gate lifting down by push button. |
●Smooth and parallel width adjustment.(lead screw) |
● SMEMA compatible. |
Lowering Gate Conveyor Series Specifications
● Transport height: |
910mm ±30mm |
● Transfer direction: |
Left to right |
● Operation side: |
Front of the machine |
● Fixed rail: |
Front of the machine |
● Interface: |
SMEMA |
● Conveyer concept: |
ESD flat belt |
● Belt speed: |
0.5-20m/min adjustable |
● PCB edge support: |
3mm |
●Components clearance: | Bottom 30 mm or specify |
● Power supply: |
230 VAC/50 Hz/1 Ph |
● Power consumption: |
100VA max. or specify |
● Machine cycle time: |
± 16 seconds |
● Passageway: |
600mm or specify |
● Air supply: |
4-6 bar |
● Air consumption: |
35 ltr /lift max. |
●Load bearing: | 1.5kg/PCB |
Model |
CYG330L |
CYG460XL |

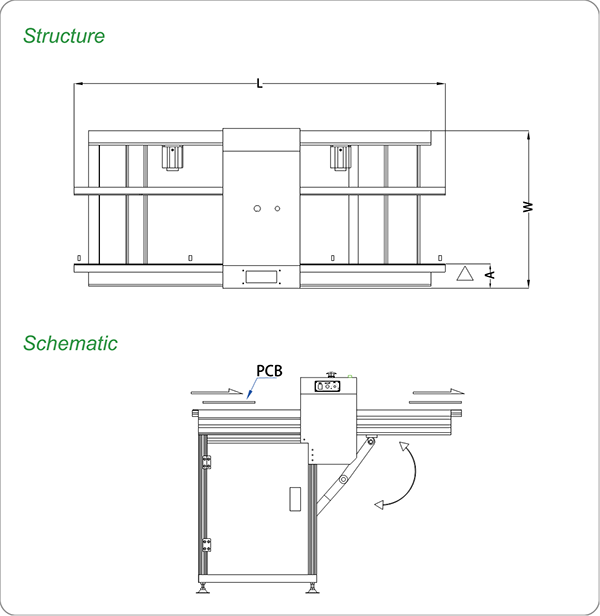

Machine Dimension(LxWxH) |
1300x560x1250 |
1300x720x1250 |
Weight |
180kg |
230kg |
PCB length |
50mm-445mm |
50mm–530mm |
PCB width |
50mm-330mm |
50mm–460mm |
PCB Thinckness |
0.6mm–4.5mm |
0.6mm–4.5mm |
Fixed rail to front dimension(A) |
86mm |
86mm |
* Customized is available
Lowering Gate Conveyor Series Options
● Electrical width adjustment. |
● Passageway length is customized |
● Other options available on request. |
