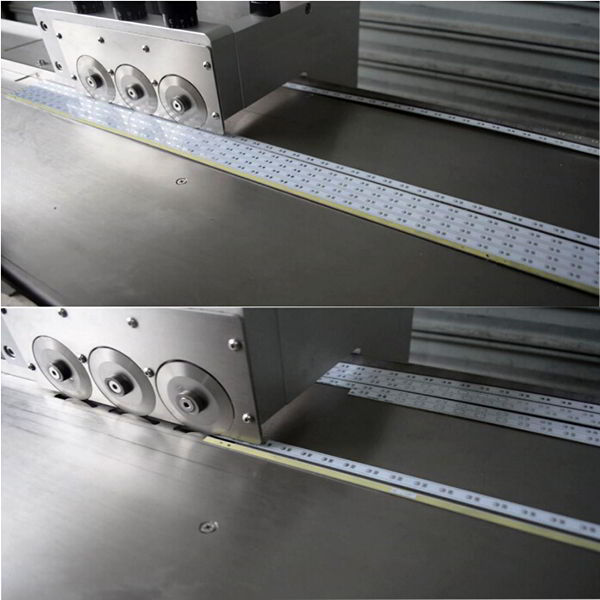

Motor-driven MDS-700 With unique cutting method, the circuit board is cut by A, B, C, three groups of circular blades. The whole cutting process is divided into three stages which can reduce 80% stress compared with the traditional separator and make the separated aluminum plate without deformation after cutting

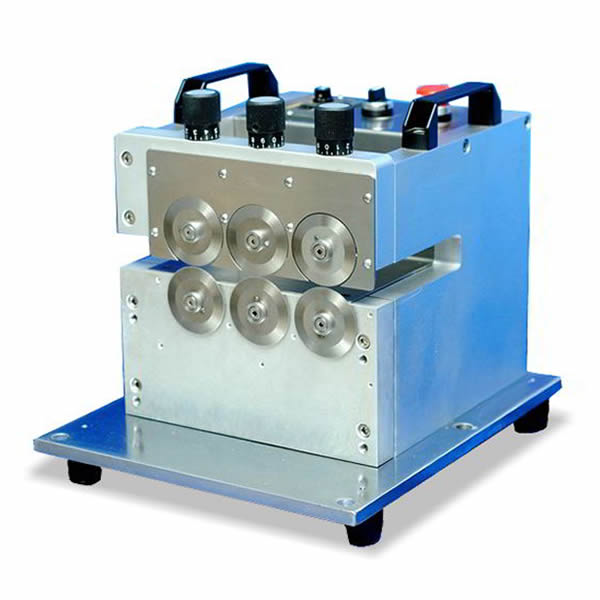

MDS-700 Series Motorized PCB Separator Feature
|
● With unique cutting method, the circuit board is cut by A, B, C, three groups of circular blades. The whole cutting process is divided into three stages which can reduce 80% stress compared with the traditional separator and make the separated aluminum plate without deformation after cutting. |
|
● With the multiple cutting method, cutting process is very smooth and greatly improves the capability of position of V-CUT groove .Even with a shallow slot V-CUT groove,the board would not jump out of blade. |
|
● Blades adopt SKD11 high speed steel material made in Germany with long service life. |
|
● All the cutting blades are calibrated by Excitation double-frequency laser interference measurement instrument. Ensure that the latter knife can accurately continue to cut in the slots which already cut by the former knife. The jitter of knife point is less than 0.02mm. Ensure perfect cutting quality. |
|

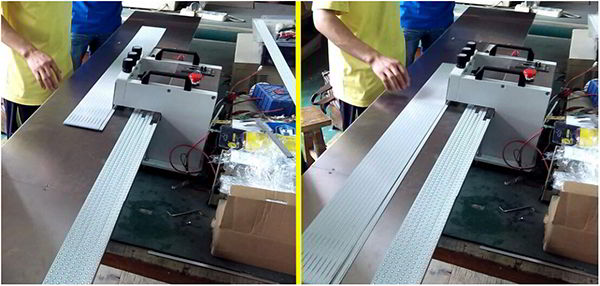

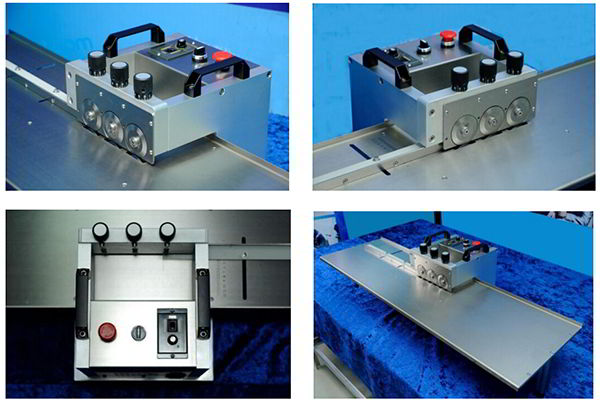

● Stainless steel 1.2 or 2.4 meter platform is choosable. |
|
● The upper and below circular blade can be precisely adjusted.be adjusted. |
|
● X, Y axis can be adjusted to ensure cutting accuracy. |
|
Six circular blade Motorized PCB Separator MDS-700 Specification |
|||
|
Model |
MDS-700(with no platform) |
MDS-710 (with 1.2M platform) | MDS-720 (with 2.4M platform) |
|
Machine size |
L325*W380*H333mm |
L325*W380*H333mm |
L325*W380*H333mm |
|
Platform size |
None |
L1200 *W360*H190mm |
L2400 *W360*H190mm |
|
Suitable PCB Length |
250mm |
250mm-600mm |
250mm-1200mm |
|
Suitable material |
FR4,AL,LED Board |
FR4,AL,LED board |
FR4,AL,LED board |
|
Max PCB width |
/ |
350mm |
350mm |
|
Cutting Speed |
Adjustable |
Adjustable |
Adjustable |
|
Max PCB Thickness |
3.5mm |
3.5mm |
3.5mm |
|
Minimum component distance from v-groove |
1.4mm |
1.4mm |
1.4mm |
|
Top component height |
15mm |
15mm |
15mm |
|
Bottom component height |
0mm(have no component) |
0mm(have no component) |
0mm(have no component) |
|
Max separating width of Single bar |
100mm |
100mm |
100mm |
|
Voltage |
220V/50HZ |
220V/50HZ |
220V/50Hz |
|
Machine weight |
33k |
33kg+6kg |
33kg+15kg |
|
Power |
60W |
60W |
60W |
MDS-700 Series Motorized PCB Separator Include
Standard configuration:
◎ MDS-700 ,710,720 machine body
◎ 1 set of circular blade (6 pcs) installed on the machine .
◎ MDS-710 includes 1.2m platform ,MDS-720 includes 2.4m platform .
Optional configuration:
◎ Cutting wheel 700 ( 1set =6 pcs)
◎ Synchronous belt ( L 560mm * W 12 mm)
