Multi Fuction Buffer Series

init sku time:

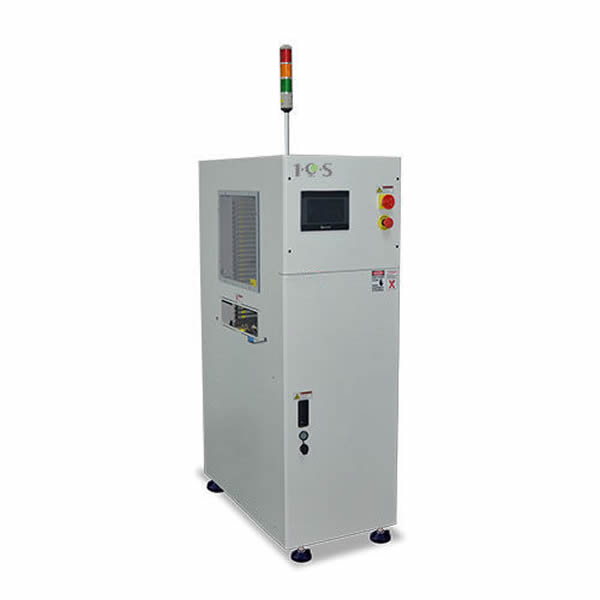

This unit allows buffering of PCB's in FIFO, LIFO, Pass-through- mode. It uses belt segments to hold the PCB over its complete lenght. When adding or extracting a PCB to/from the buffer a drive mechanism engages with the belt segment to smoothly transfer the PCB in- or out.

Available Options

Multi Fuction Buffer Series Features

● Pannasonic PLC Program control

● Selectable FIFO, LIFO and by-pass mode.

● Selectable pitch settings.

● Enclosed construction improve level of safety.
● The status of each slot can be changed independently.
● Conveyor width adjustment using hand wheel.

● Threshold signal to protect PCB's in upstream oven.

● User friendly “soft touch” LED membane control panel.

● Towerlight display for machine status.

● SMEMA compatible.

Multi Fuction Buffer Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD flat belt

● Belt speed:

0.5-20m/min adjustable

● PCB edge support:

3mm

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

250VA max. or specify

● Air supply:

4-6 bar

● Air consumption:

15 ltr/min max

● Cycle time:

± 15 seconds

● Pitch distance:

20mm or specify

● Buffer capacity:

25 PCBs or specify

LIFO Vertical buffer.png

 Model

 STC330L

 STC460XL

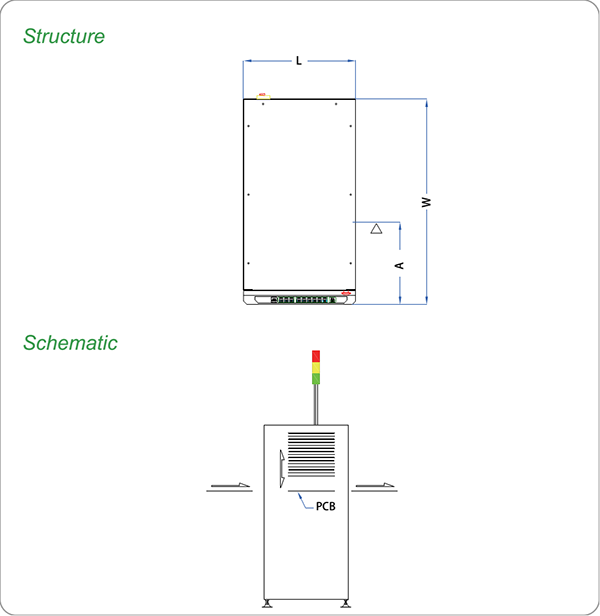

 Machine Dimension (L x W x H)

 550 x 950 x 1700

 650 x 1150 x 1700

 Weight

 150kg

 210kg

 PCB length

 50mm - 380mm

 50mm - 530mm

 PCB width

 50mm - 330mm

 50mm - 460mm

 PCB Thinckness

 0.6mm – 4.0mm

 0.6mm – 4.0mm

 Fixed rail to front dimension(A)

 270mm

 270mm

* Customized is available

Multi Fuction Buffer Series Options

● Reject mode for buffering bad board.

● Additional PCB boards capacity.

● Automatic conveyor width adjustment.

● Cantilevered input-or output conveyor (length 500 mm).

● Other options available on request.
