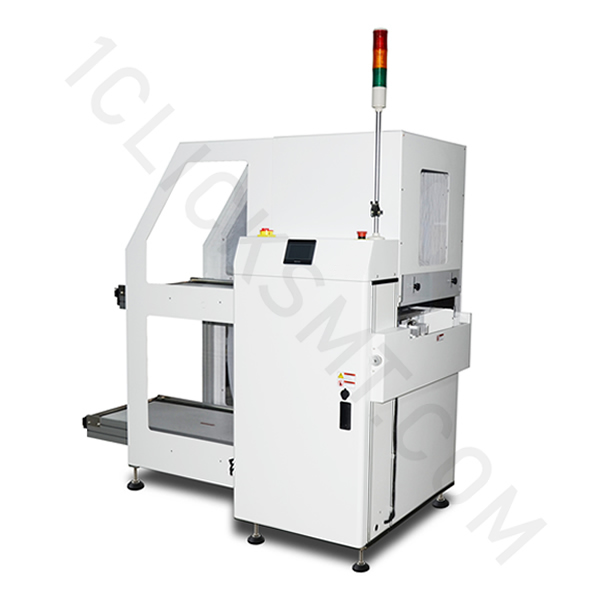

Multi Magazine Loader Series

init sku time:

The unit loads your production line automatically by pushing PCB's out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.

Available Options

Multi Magazine Loader Series Features

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Towerlight display for machine status.

● Automatic magazine change-over.

● Flexible platform to suit standard magazines.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● Automatic magazine alignment by upper and lower pneumatic clamping.

● SMEMA compatible.

Multi Magazine Loader Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

350VA max. or specify

● Air supply:

≥6 bar

● Air consumption:

10 ltr/min max.

● PCB loading time:

±6 seconds

● Magazine change-over time:

±30 seconds

● Pitch distance:

10.20.30.40mm pitch or specify.

● Total number of magazines:

* 1 mgazine on the lifter platform.

* 1 empty magazine on the upper magazine conveyor

* 2 full magazines on the lower magazine conveyor

* or specify.

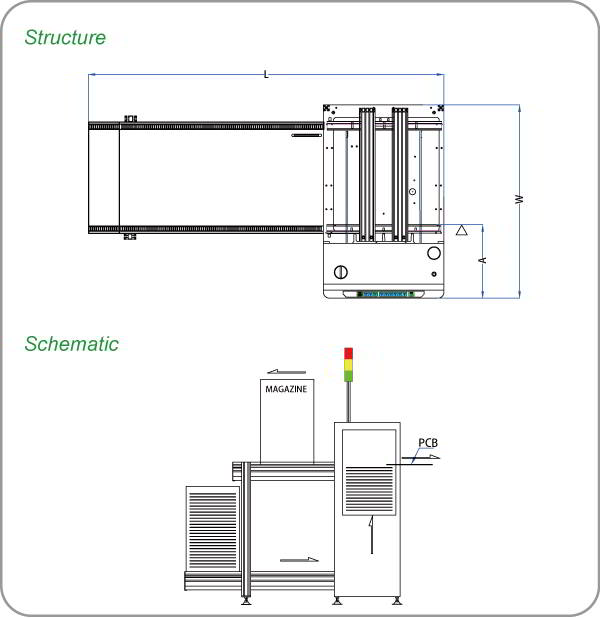

Multi mgazine loader.jpg

  Model

  LDB250M

  LDB330L

  LDB390LL

  LDB460XL

  Machine Dimension   (LxWxH)

  1330x765x1250

  1650x845x1250

  1800x910x1250

  1800x970x1250

  Weight

  140kg

  180kg

  220kg

  240kg

  PCB length

  50mm-330mm

  50mm-445mm

  50mm-530mm

  50mm-530mm

  PCB width

  50mm-250mm

  50mm-330mm

  50mm-390mm

  50mm-460mm

  PCB Thinckness

  0.6mm–4.5mm

  0.6mm–4.5mm

  0.6mm–4.5mm

  0.6mm–4.5mm

  Magazine Dimensions  (max.)

  355x320x563

  460x400x563

  535x460x573

  535x530x570

  Fixed rail to front dimension(A)

  340mm

  340mm

  340mm

  340mm

* Customized is available

Multi Magazine Loader Series Options

● Width adjustable magazine conveyor(s).

● Additional magazine capacity.

● Touchscreen instead of button panel.

● Enclosed construction improve level of safety

● Other options available on request.
