Multi Magazine Unloader Series

init sku time:

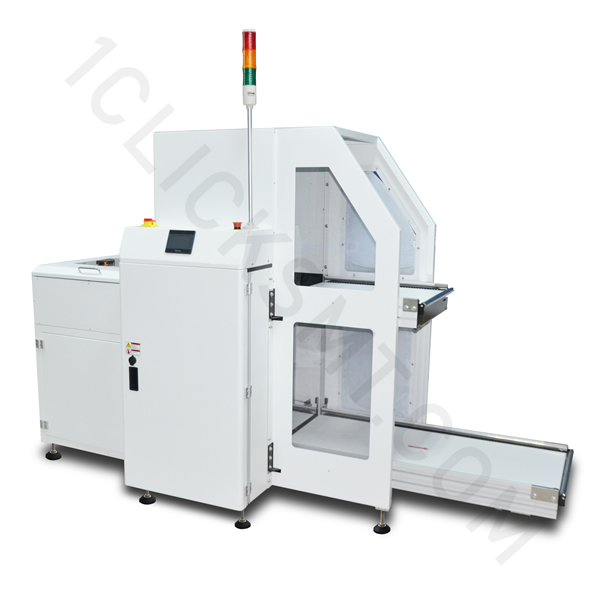

The unit provides automatic magazine change-over for continuous line unloading. PCB's are collected from an upstream pusher conveyor and pushed into the magazine. Full magazines are offl oaded at an ergonomic low level.

Available Options

Multi Magazine Unloader Series Features

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Towerlight display for machine status.

● Automatic magazine change-over.

● Flexible platform to suit standard magazines.

● Conveyor width adjustment using hand crank.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● SMEMA compatible.

Multi Magazine Unloader Series Dimension

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD belt (round or flat)

● Belt speed:

16m /min

● PCB edge support: 3mm

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

350VA max. or specify

● Air supply:

≥6 bar

● Air consumption:

10 ltr/min max.

● PCB unloading time:

±6 seconds

● Pitch distance:

10.20.30.40mm pitch or specify

● Magazine change-over time:

± 30 seconds

● Total number of magazines:

* 1 mgazine on the lifter platform

* 1 empty magazine on the upper magazine conveyor

* 2 full magazines on the lower magazine conveyor

* or specify

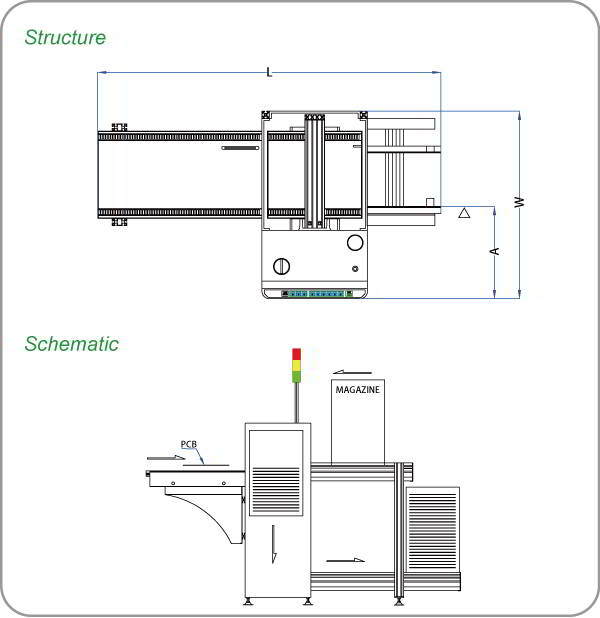

Multi magazine unloader.jpg

  Model

  ULDB250M

  ULDB330L

  ULDB390LL

  ULDB460XL

  Machine Dimension   (LxWxH)

  1930x760x1250

  2220x845x1250

  2660x909x1250

  2660x979x1250

  Weight

  160kg

  190kg

  230kg

  260kg

  PCB length

  50mm-330mm

  50mm-445mm

  50mm-530mm

  50mm-530mm

  PCB width

  50mm-250mm

  50mm - 330mm

  50mm-390mm

  50mm-460mm

  PCB Thinckness

  0.6mm–4.5mm

 0.6mm–4.5mm

  0.6mm–4.5mm

  0.6mm–4.5mm

  Magazine Dimensions  (max.)

  355x320x563

  460x400x563

  535x460x570

  535x530x570

  Fixed rail to front  dimension(A)

  364mm

  364mm

  364mm

  364mm

* Customized is available

Multi Magazine Unloader Series Options

● Additional magazine capacity.

● Touchscreen instead of button panel.

● Enclosed construction improve level of safety.

● Width adjustable magazine conveyor(s).

● Other options available on request.
