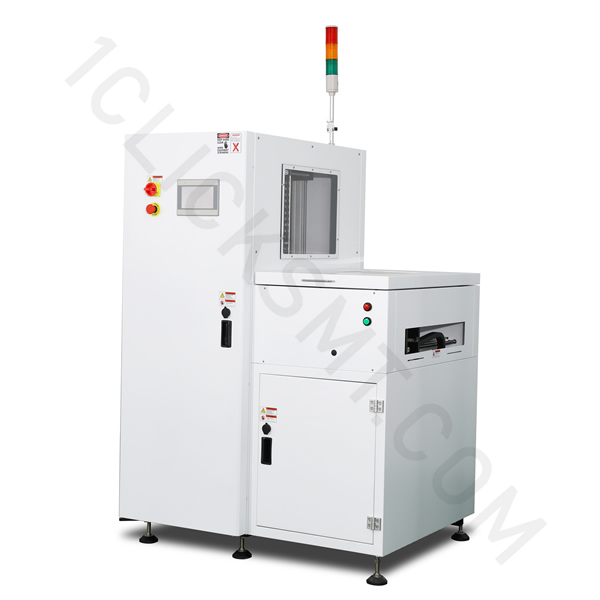

NG OK Vertical Buffer Series
The NG OK vertical buffer is designed to buffer NG and OK board after inspection machine (AOI/SPI) and pass a OK board to next process. NG board will go to the upper conveyor for visual check.
Available Options
NG OK Vertical Buffer Series Features
|
● Pannasonic PLC Program control. |
|
● Selectable FIFO, LIFO and by-pass mode. |
|
● Selectable pitch settings. |
|
● Conveyor width adjustment using hand wheel. |
|
● Threshold signal to protect PCB's in upstream oven. |
|
● NG/OK table provides easy access to the NG PCBs |
| ● Towerlight display for machine status. |
|
● Good or bad board separation. |
|
● SMEMA compatible. |
NG OK Vertical Buffer Series Specifications
|
● Transport height: |
910mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD flat belt |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
|
● Power supply: |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
250VA max. or specify |
| ● Cycle time: | ± 15 seconds |
|
● Air supply: |
4-6 bar |
|
● Air consumption: |
15 ltr/min max |
| ● Pitch distance: |
20mm or specify |
|
● Buffer capacity: |
15 PCBs or specify |
|
Model |
STD250M |
STD330L |
STD390LL |
|
Machine Dimension (L x W x H) |
1000 x 950 x 1560 |
1100 x 1075 x 1560 |
1200 x 1280 x 1560 |
|
Weight |
150kg |
220kg |
280kg |
|
PCB length |
50mm - 330mm |
50mm - 445mm |
50mm - 530mm |
|
PCB width |
50mm - 250mm |
50mm - 330mm |
50mm - 390mm |
|
PCB Thinckness |
0.6mm – 4.0mm |
0.6mm – 4.0mm |
0.6mm – 4.0mm |
|

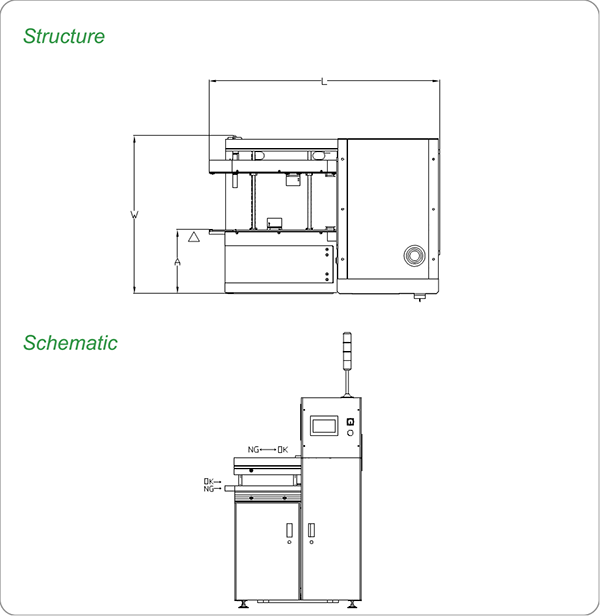

Fixed rail to front dimension(A) |
270mm |
270mm |
270mm |
* Customized is available
NG OK Vertical Buffer Series Options
|
● Additional PCB boards capacity. |
|
● Automatic conveyor width adjustment. |
| ● Cantilevered input- or output conveyor (length 500 mm) |
|
● Other options available on request. |
