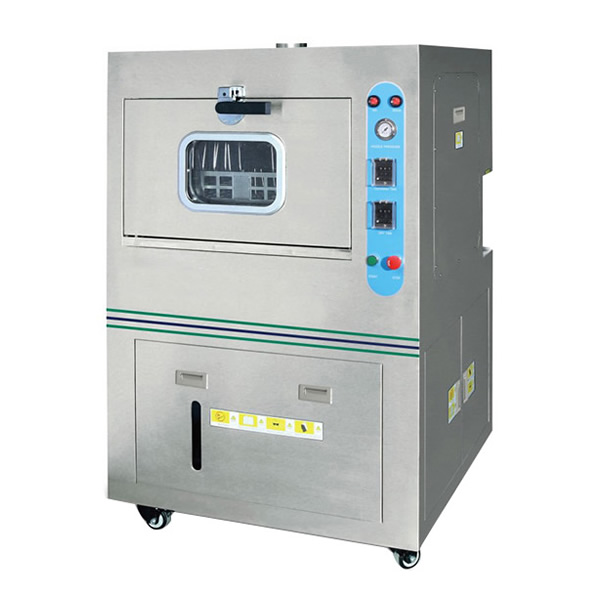

Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600 is especially suited for scraper and misprinted board cleaning ,it adopt full pneumatic control without power supply to avoid fire risk . 3 stage precision filtering system greatly prolong cleaning liquid service life. High quality parts ensures long service life of machine.
|

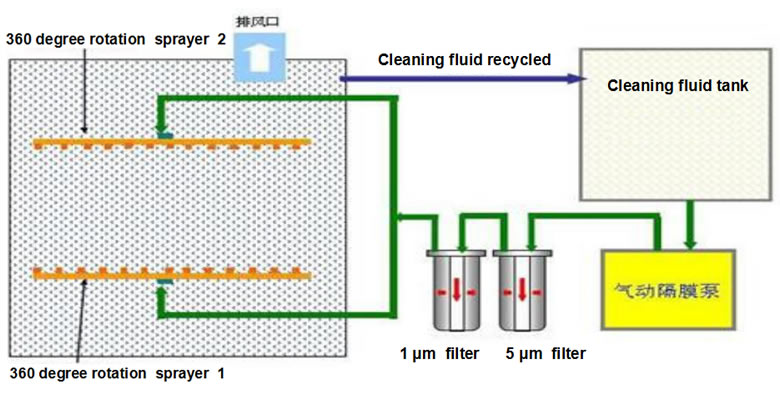

Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600 Cleaning process : |
|
|
PSC-600 Cleaning process : |
|
|
Exhaust port |
|
|
|
|

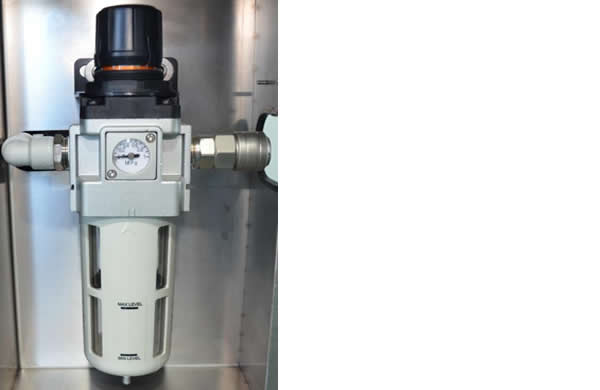

● Inlet air pressure regulator, which filter the oil and water in the compressed air. |
|

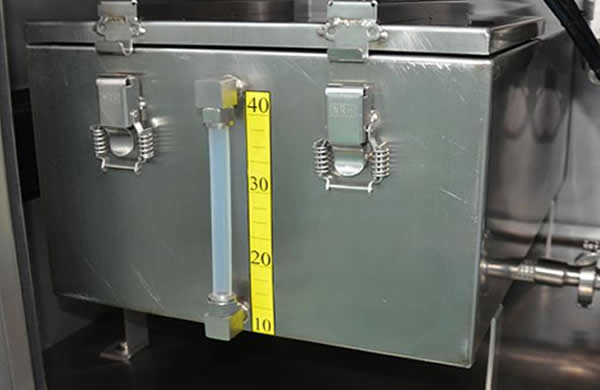

● Stainless steel liquid tank with level display, which can contain various types of acid and alkali resistant cleaning liquid. |
|

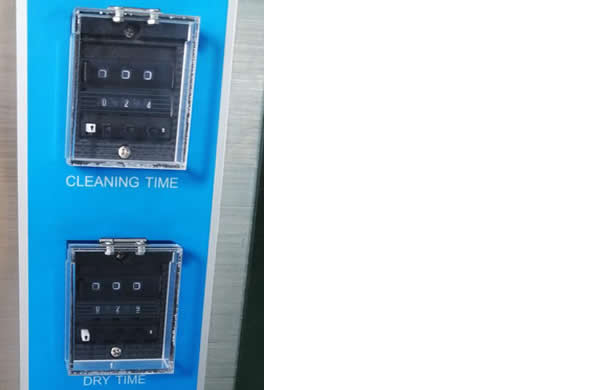

● Germany made Hengstler pneumatic timer. |
|

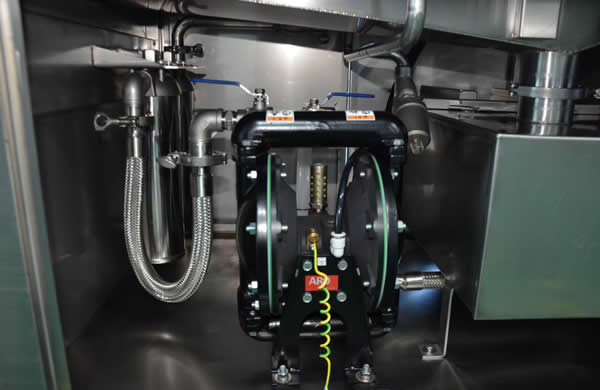

● USA made Ingersoll RandIp neumatic diaphragm pump. |
|

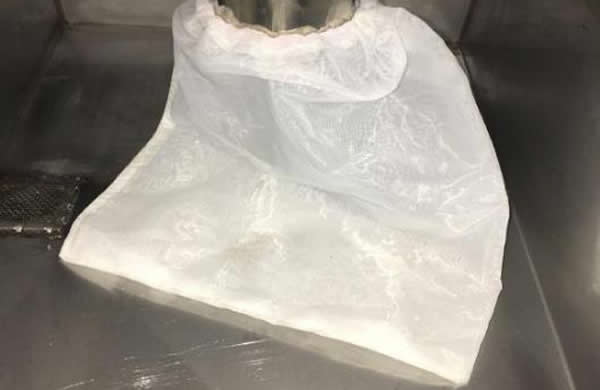

● 10 μm filtering screen(filter impurities and labels). |
|
|

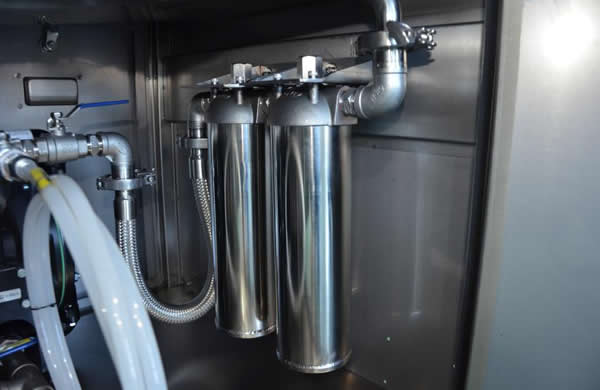

● 5 μm filter (filtering tiny particles and solder paste) ● 1 μm (filter micro particles and rosin) |
|
|

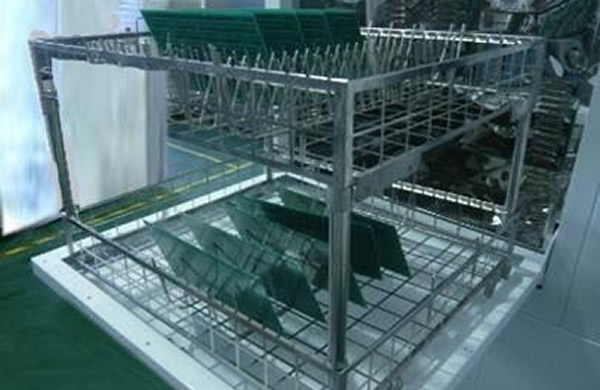

● Cleaning basket size : Maximum size L560*W610*H100 (mm) |
|
Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600 Features: |
|
● Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600 is especially suited for scraper and misprinted board cleaning. |
|
● Full pneumatic control without power supply to avoid fire risk. |
|
● High precision 3 class filtering system ensure cleaning quality. |
|
● Cleaning plus air drying process to ensure cleanliness. |
|
● The liquid pressure can be displayed by the hydraulic gauge on the operating panel. |
|
● The machine is made of 304 stainless steel, which is durable, acid resistant and alkaline resistant. |
|
● One-button operation, easy operation to complete cleaning, air drying process. |
|
● Equipped with high quality parts such as USA made Ingersoll RandIp neumatic diaphragm pump,Germany made Hengstler pneumatic timer,which ensure long service life of machine. |
|
Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600 specification : |
|
|
Model |
PSC-600 |
|
Cleaning basket size |
Max L560 × W610 × H100(mm) |
|
Scraper size (max) |
600mm |
|
Cleaning fluid capacity |
50L(Max) |
|
Optimum liquid usage |
40L |
|
Cleaning method |
360 ° rotating cleaning fluid injection and high pressure air injection (cleaning and drying) |
|
Cleaning time |
1-15 minutes (conventional process) |
|
Drying time |
1-15 minutes (conventional process) |
|
External air pressure |
0.45Mpa ～ 0.7Mpa |
|
Filtering system |
Three-stage filtering |
|
Level 1 filter |
10 μm filtering screen(filter impurities and labels) |
|
Level 2 filter |
5 μm (filtering tiny particles and solder paste) |
|
Level 3 filter |
1 μm (filter micro particles and rosin) |
|
Exhaust port size |
Φ120 × H40(mm) |
|
Air consumption |
400-600L/Min |
|
Machine net weight |
260kg |
|
Machine size(mm) |
L1000 × W1000 × H1650(mm) |
|
Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600 configuration : |
|
Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600 includes : |
|
● Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600*1 set |
|
● 1μm filter core *1pcs |
|
● 5μm filter core *1pcs |
|
Optional configuration: |
|
● 5μm filter core (consumable parts , service life : around 1 months) |
|
● 1μm filter core (consumable parts, service life : around 1 months) |
|
● 10μm filtering screen (consumable parts ,service life : around 3 months) |
|
● Vacuum filter (consumable parts ,service life : around 3 months) |
