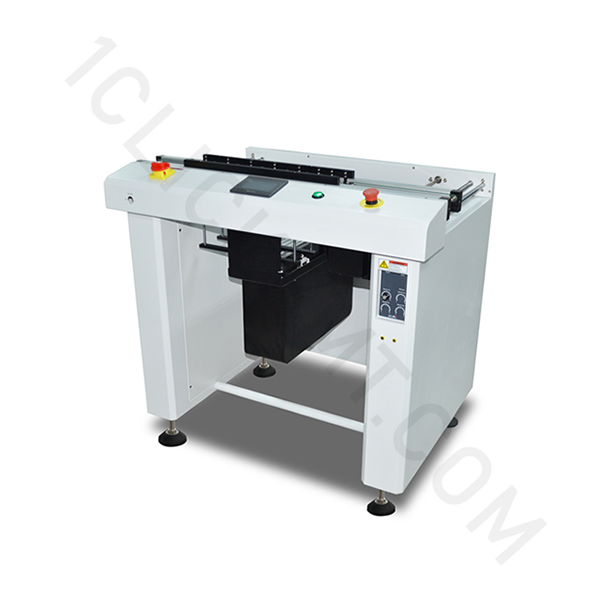

Reject Conveyor Series
The unit installed after AOI for separated NG board for visual inspect and good board will pass through without stopping.
Available Options
Reject Conveyor Series Features
|
● Pannasonic PLC Program control. |
|
● Start / Stop push button. |
|
● Anti-static conveyor belt. |
|
● Centre PCB stop position. |
| ●Touchscreen control pannel. |
|
● Easy way of belt replacement. |
|
● Reject and by-pass mode selectable. |
|
● Heavy bottom design to prevent shifting. |
|
● PCB precise stopping in position. |
|
● Smooth and parallel width adjustment.(lead screw). |
|
● SMEMA compatible. |
Reject Conveyor Series Specifications
|
● Transport height: |
910mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD flat belt |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
| ●Components clearance: | Bottom 30 mm or specify |
|
● Power supply: |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
100VA max. or specify |
| ● Load bearing: |
1.5kg/PCB |
|
● Buffering capacity: |
1 PCB or specify. |
Standard lengths (B) : 500 , 600 , 1000 , 1500 , 2000 .
|
Model |
CYC330L (B) |
CYC460XL (B) |
|
Machine Dimension (LxWxH) |
(B)x739x960 |
(B)x950x960 |
|
Weight |
70-95kg |
90-115kg |
|
PCB length |
50mm-457mm |
50mm–530mm |
|
PCB width |
50mm-330mm |
50mm–460mm |
|
PCB Thinckness |
0.6mm–4.5mm |
0.6mm–4.5mm |
|

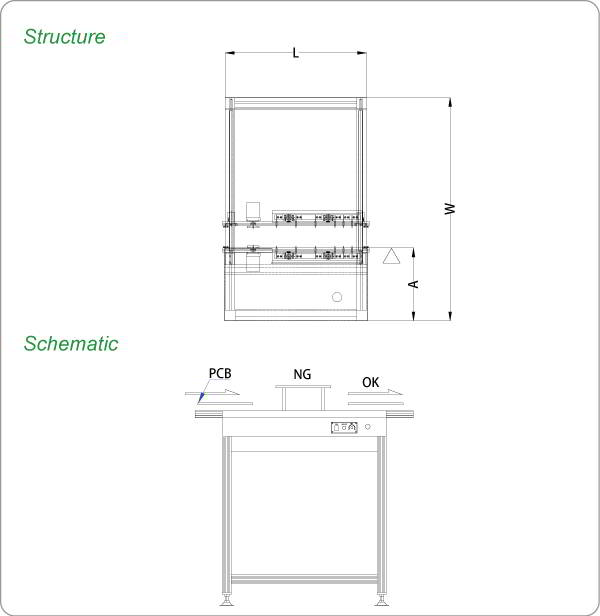

Fixed rail to front dimension(A) |
230mm |
230mm |
* Customized is available
Reject Conveyor Series Options
|
● Automatic width adjustment (set in touchscreen) |
|
● Light fixture. |
|
● Additional lift positions for extra buffer capacity |
| ● Other options available on request. |
