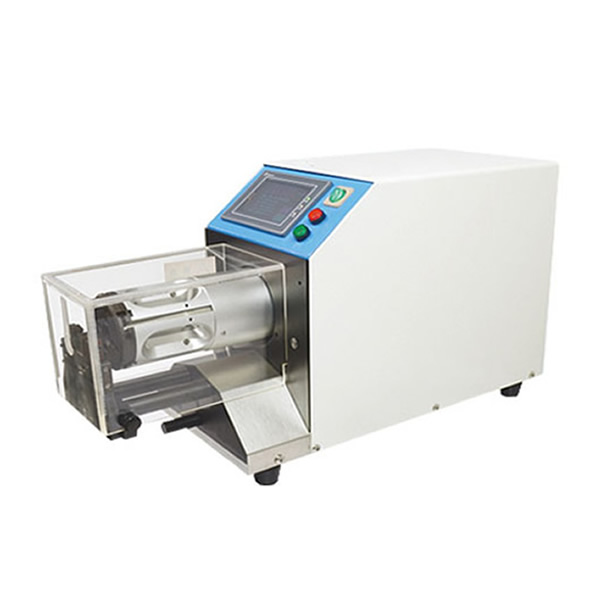

Semi automatic coaxial cable stripping machine TBX-8515/8023

BX-8515/8023 Series is a high-precision coaxial-cable stripping equipment, unique 4 blades design makes it can strip thin and hard material of coaxial cable with wide processing range, max stripping layer is 9 layers.

Available Options


Wire clamping device: 4 blades design, auxiliary blades has automatic straight-aligning function make stripping more precise, never damage cable.	Cutting blades: Blade is made of Swiss tungsten steel, unique 3 side grinding technology on blades makes longer service life than normal blade.

Motor and ball screw : High quality step motor and ball screw driving ensure stripping precision.

Semi Automatic Coaxial Cable Stripping Machine TBX-8515/8023 Features

● BX-8515/8023 Series is a high-precision coaxial-cable stripping equipment, unique 4 blades design makes it can strip thin and hard material of coaxial cable with wide processing range, max stripping layer is 9 layers.

● Wire clamping device is programmable with motor driving, self-align, clamping force can be set on software.

● 4 blades design, auxiliary blades has automatic straight-aligning function make stripping more precise, never damage cable.

● Adopt intelligent control technology, friendly man-machine interface, can store max 100 kinds of process data, easy to operate.

● 2 kinds of start function of button or pedal, stripping speed is adjustable.

● Blade is made of Swiss tungsten steel, unique 3 side grinding technology on blades makes longer service life than normal blade.

TBX-8515/8023 Series Specification
Model	TBX-8515	TBX-8023
Maximum processing cable diameter	15mm	23mm
Minimum processing cable diameter	1.5mm	2mm
Minimum cutting depth	0.01mm	0.01mm
Maximum stripping length	85mm	80mm
Minimum stripping length	0.1mm	0.1mm
Maximum stripping layers	9 layers	9 layers
Driving mode	Motor/ball screw drive	Motor/ball screw drive
Display mode	Touch screen with English interface	Touch screen with English interface
Cutting blade	4pcs	4pcs
Blade material	Swiss tungsten steel	Swiss tungsten steel
Blade lifetime	Approx 300,000 -500,000 times	Approx 300,000 -500,000 times
Centering plate	4pcs	4pcs
Wire clamping device	Automatic self-aligning, motor drive, clamping force is programmable	Automatic self-aligning, motor drive, clamping force is programmable
Productivity	400-600 PCS/hr (depending on the cable type and length)	400-600 PCS/hr (depending on the cable type and length)
Starting mode	Button/Pedal	Button/Pedal
Power supply	AC220V/50/60HZ	AC220V/50/60HZ
Power	380W	380W
Dimensions	L640XW230XH330mm	L640XW230XH330mm
Weight	19kgs	19kgs
