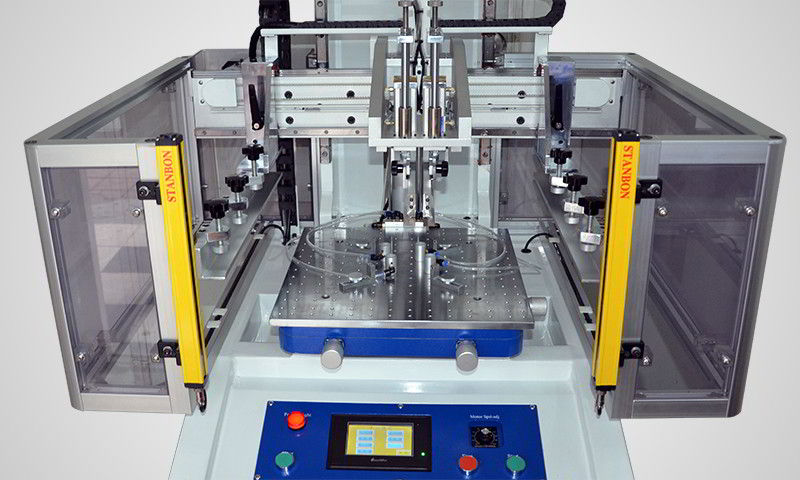

Semi-Automatic Screen Printer SP-750V

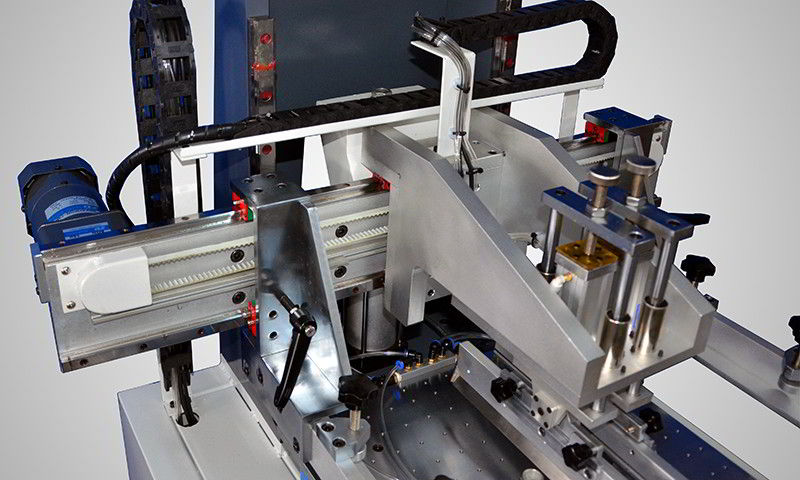

Motion system
Ball linear guide rail and adjustable speed stepper motor to drive, ensure the stability and precision of the printing. Repeat accuracy +/- 0.05mm.

Excellent Positioning and Precise adjustment

This unit provides superior printing results with precise micrometer screws (X Y R & Level) adjustment of the stencil. Excellent positioning accuracy and unique floating print head to make the solder paste more even.

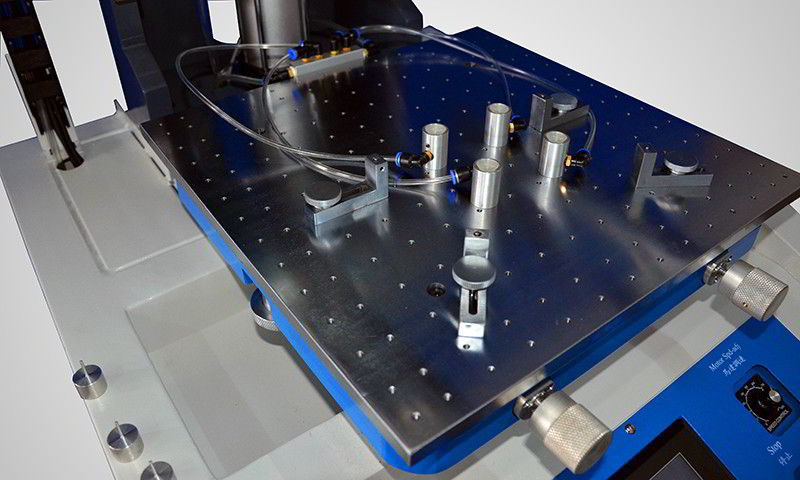

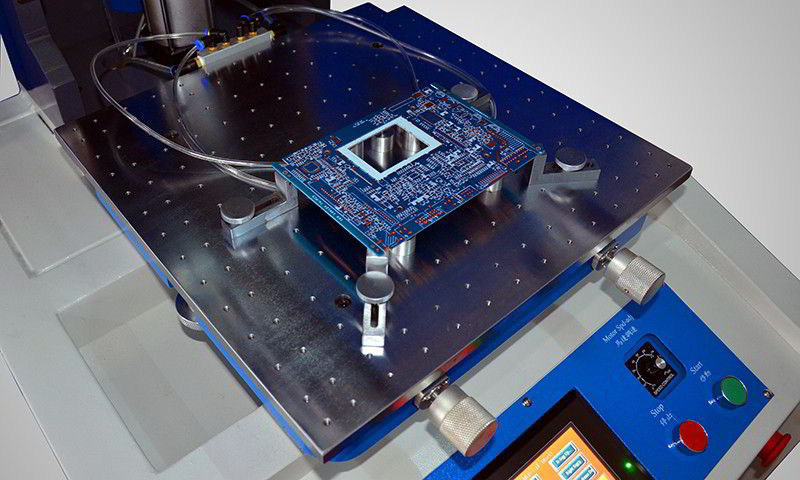

Combined working table

This unit is equiped with groups of vacuum suck holders and magnetic pins, operator can fix positioning pins based on PCB’s dimension, convenient for changeover, vacuum suck hold PCB during printing to make sure printing result.

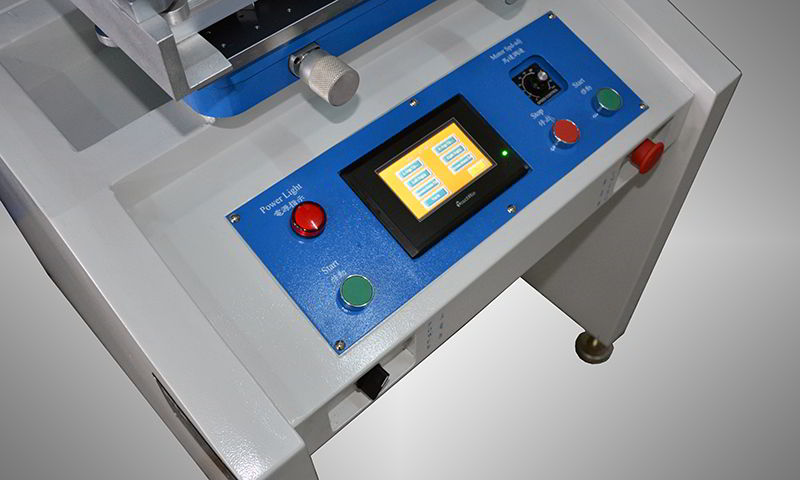

Control & Operation system

The PLC & touch screen control system makes sure system work more stable, Snap-off speed can be adjusted by production setting based on different PCB and the Function of cleaning stencil alarm remind operator to clean timely.

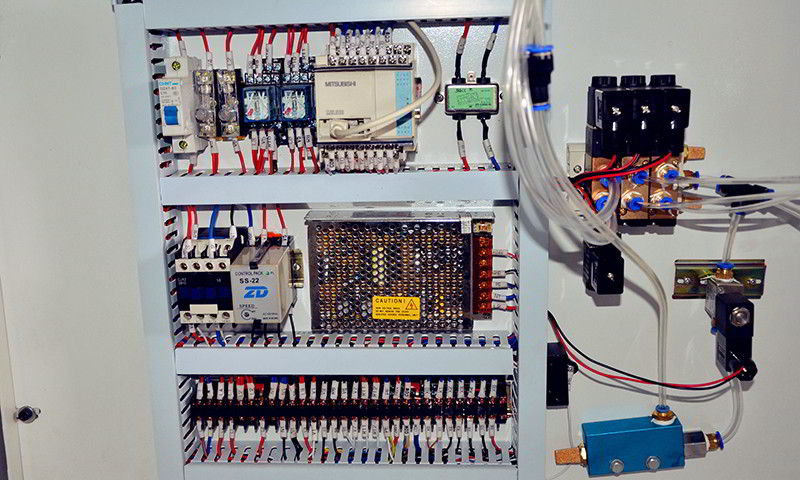

Perfectly Configuration

Use famous brands electrical components and pneumatic component, like Mitsubishi PLC,Omron intermediate relay, Schneider button switch, AIRODK air cylinder etc.

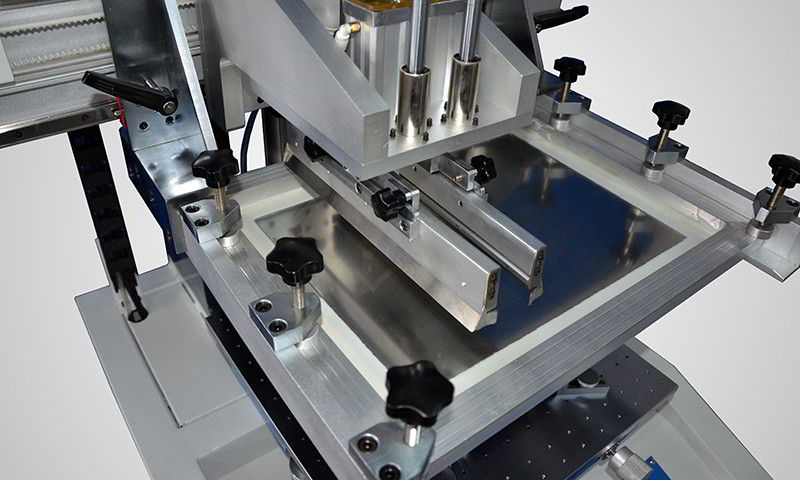

Squeegee

Different types of squeegee for most applications, you can select between rubber and metal type squeegees in specified sizes.
