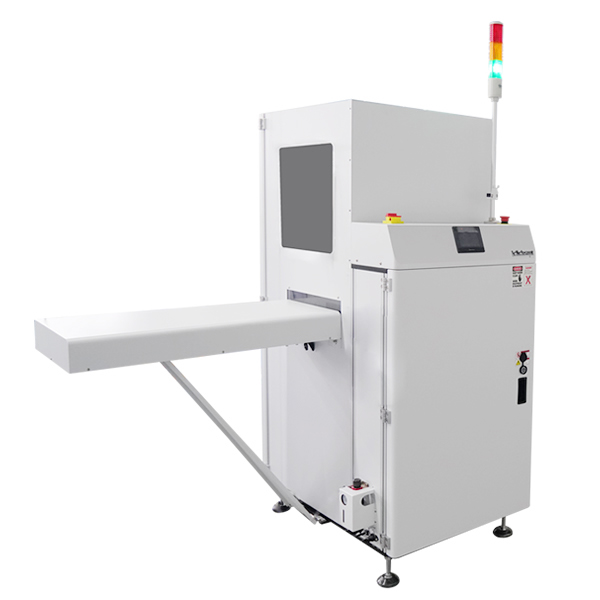

Single Magazine Loader Series

The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the downstream machine.

Single Magazine Loader Series Features

● Pannasonic PLC Program control

● Selectable pitch settings.

● Flexible platform to suit standard magazines.

● Exchange magazine from the rear of the machine.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● Magazine is manually placed on the platform and clamped in position.

● SMEMA compatible.

Single Magazine Loader Series Specifications

● Transport height:	910mm ±30mm
● Transfer direction:	Left to right
● Operation side:	Front of the machine
● Fixed rail:	Front of the machine
● Interface:	SMEMA
● Power supply：	230 VAC/50 Hz/1 Ph
● Power consumption:	240VA max. or specify
● Air supply:	≥6 bar
● Air consumption:	10 ltr/min max.
● PCB loading time:	±6 seconds
● Pitch distance:	10.20.30.40mm pitch or specify.
●Total number of magazines:	1 mgazine on the lifter platform or specify

Model	LDA250M	LDA330L	LDA390LL	LDA460XL
Machine Dimension (L x W x H)	900 x 1150 x 1250	1150 x 1450 x 1250	1450 x 1550 x 1250	1450 x 1750 x 1250
Weight	120kg	140kg	160kg	180kg
PCB length	50mm - 330mm	50mm - 445mm	50mm - 530mm	50mm - 530mm
PCB width	50mm - 250mm	50mm - 330mm	50mm - 390mm	50mm - 460mm
PCB Thinckness	0.6mm – 4.5mm	0.6mm – 4.5mm	0.6mm – 4.5mm	0.6mm – 4.5mm
Magazine Dimensions (max.)	355 x 320 x563	460 x 400 x 563	535 x 460 x 573	535 x 530 x 570
Fixed rail to front dimension(A)	330mm	330mm	330mm	330mm
