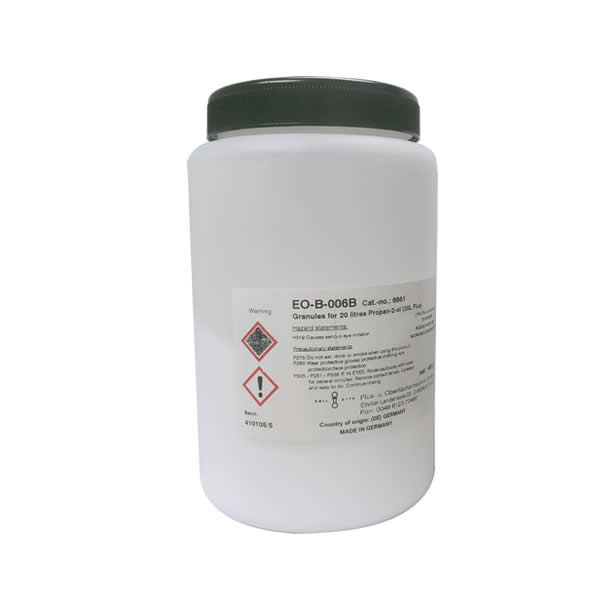

Special Flux Powder EO-B-006B
EO-B-006B is universally suitable for wave-, selective- and hand-soldering of PCBs and complies with specification DIN-EN 61190-1-1: L0. Accordingly, it contains organic, halogen-free activating additives in a combination specially tuned to the thermal requirements of the soldering processes. EO-B-006B can be applied by brushing, spraying, dipping etc., IMPORTANT: Foamfluxing is not possible. The solids content is 3% by weight.
Available Options
|
Instructions for use |
|
This flux is very versatile and OPS-compatible. There are good results for manual, wave and selective soldering, as well as for cable assembly / wire tinning. |
|
Sprayfluxing: If possible, try at first a quantity of 20 – 40 ml/min. and observe the distribution of the flux. After that, correct the quantity. Air-pressure: 18 – 20 l/min. |
|
Preheating: Entering the solder-wave, the temperature on the topside of the pasteboards should be 80 – 110 °C, dependent on type of boards, lay-out etc. – in case of using lead-free solders, preheating temperatures of 100 – 140 °C on the topsides are possible. |
|
Packing units: Jerrycans with 5 and 20 litres, other packing sizes on request |
|
Safety instructions: Please refer to the current MSDS |
|
Solder Flux Powder EO-B-006B Specification: |
|
|
Model |
EO-B-006B |
|
Appearance: |
Colourless, transparent, liquid |
|
Solid contents: |
2.9 – 3.1% |
|
Density (20° C): |
0.795 (+/-0.003)g/ml |
|
Acid-no.: |
23 – 26 mg KOH/g |
|
Activators: |
Halogen-free, halide-free, (Di) Carboxylic acid complex, resin/rosin-free |
|
Halogen-content: |
0 |
|
Solvents: |
short chain alcohols |
|
Flash-point: |
12 °C |
