This recorder is specifically designed in-line temperature tester for both wave-soldering machine and reflow-soldering machine and can perform both wave-soldering and reflow-soldering operations. Its sampling ratio is between 0.05S/channel and 600s/channel.Total data memory of 3,900,000 points and the first in our industry to store limitless pairs of data.Such functions as optimized real-time display and data storage status display are added.Supported by PC software’s back-stage analysis function, it can measure manufacturing process and draw temperature profiles. It can work in multiple-channel and in-line way, thus preventing the trouble with off-line analyzer. Accordingly, they are widely used in measuring both PCB mounting and inserting operations and also to draw temperature profiles in other industries.
|
|
HC Series temperature profiler uses 4 k-type thermocouples measurements at various areas on the surface of the board , specifically designed in-line temperature tester for both wave-soldering machine and reflow-soldering machine and can perform both wave-soldering and reflow-soldering operations. One-key start and stop the recording. |
|
|
Thermal Profiler of 3,900,000 points and the first in our industry to store limitless pairs of data. Such functions as optimized real-time display and data storage status display are added. Supported by PC software’s back-stage analysis function, it can measure manufacturing process and draw temperature profiles. It can work in multiple-channel and in-line way, thus preventing the trouble with off-line analyzer. Accordingly, they are widely used in measuring both PCB mounting and inserting operations and also to draw temperature profiles in other industries. |

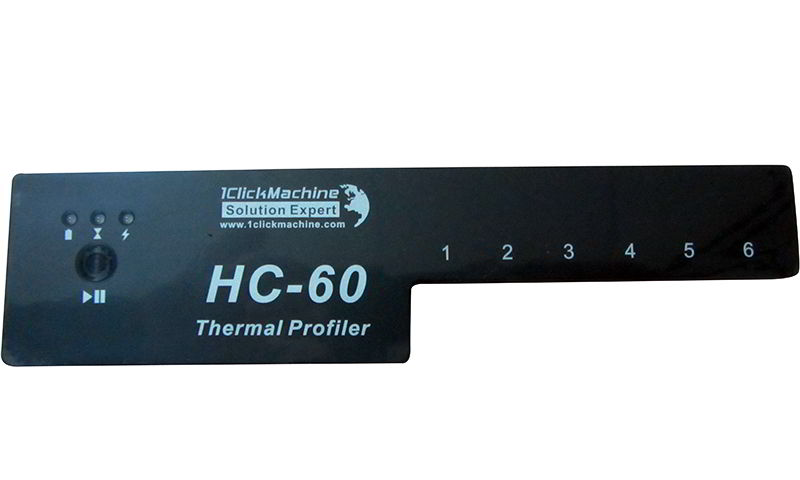

HC-40/60/12 Thermal Profiler Feature
|
● Easy one-key operation. |
|
● USB2.0 data cable and USB charger. |
|
● Humane interface and powerful analysis function. |
|
● High sampling ratio with minimum sampling interval of 0.05S. |
|
● Low power consumption, automatic switch to power-saving mode, continuous 5-hour operation. |
|
● Total data memory of 3,900,000 points and the first in our industry to store limitless pairs of data. |
|
HC-40/60/12 - Specifications |
|
|
Model |
HC-40/60/12 Thermal Profiler |
|
Channels |
4, 6,12CH |
|
Thermo-couple |
K-type thermo-couple |
|
Sampling interval |
From 0.05S/channel to 600s/channel |
|
Data recorded |
Up to five groups of data with each group covering 780,000 points |
|
Measuring precision |
+/- 1℃ (500℃ or less) |
|
Measuring range |
0-500℃ |
|
Power consumption |
≤ 100mW |
|
Operating voltage |
3.2VDC (Built-in rechargeable battery) |
|
Discrimination |
0.1℃ (Full measuring range) |
|
Maximum bearable temperature |
It will stop working if temperature exceeds 85℃ |
|
Connection |
USB (Mini-B) |
|
Dimensions |
L220 X W54 X H12.5mm |
|
Heat insulation box size |
L296 X W75 X H28mm |
|
Heat insulation box parameters |
||||
|
Temperature |
150℃ |
200℃ |
250℃ |
300℃ |
|
Time |
18min |
10min |
8min |
5min |

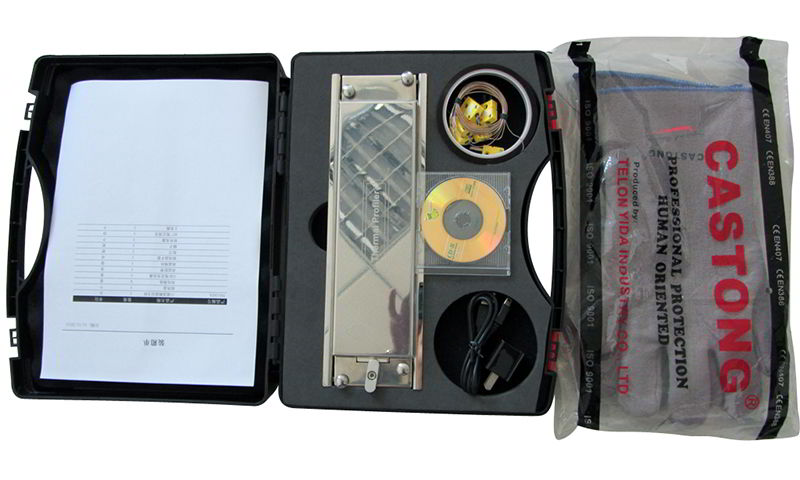

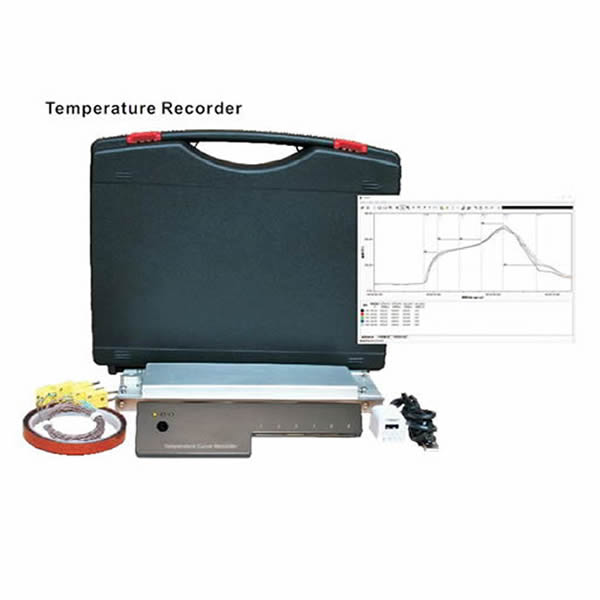

HC-40/60/12 Thermal Profiler Include
|
HC-40/60/12 Configurations (Standard Included): |
||
|
NO. |
ITEM NAME |
QUANTITY |
|
1 |
Recorder |
1 |
|
2 |
Heat insulation box |
1 |
|
3 |
K-type thermo-couple |
6 |
|
4 |
High-temp adhesive tape |
1 |
|
5 |
High-temp gloves |
1 |
|
6 |
USB charger |
1 |
|
7 |
Mini USB cables |
1 |
|
8 |
Software CD |
1 |
|
9 |
User Guide and Warranty Card |
1 |
