Application of WZ-1202 and WZ-1206: thick film circuit, pressure sensor (piezoresistive type, capacitance type), glass glazed potentiometer, dielectric antenna, ceramic metallization, microwave oven magnetron RFID, automobile oil level sensor, air quality sensor, integrated LED.

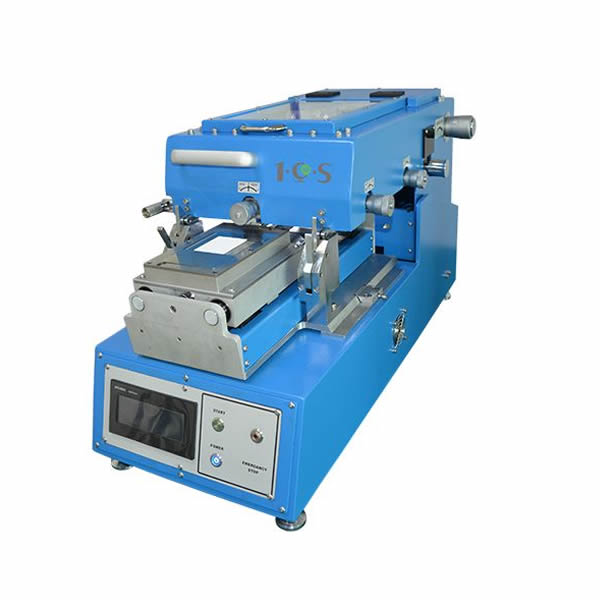

Thick Film Screen Printer Series Details

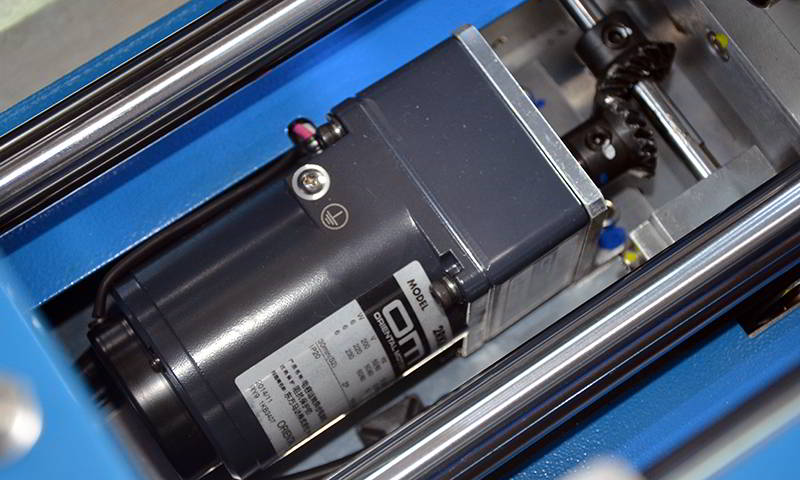

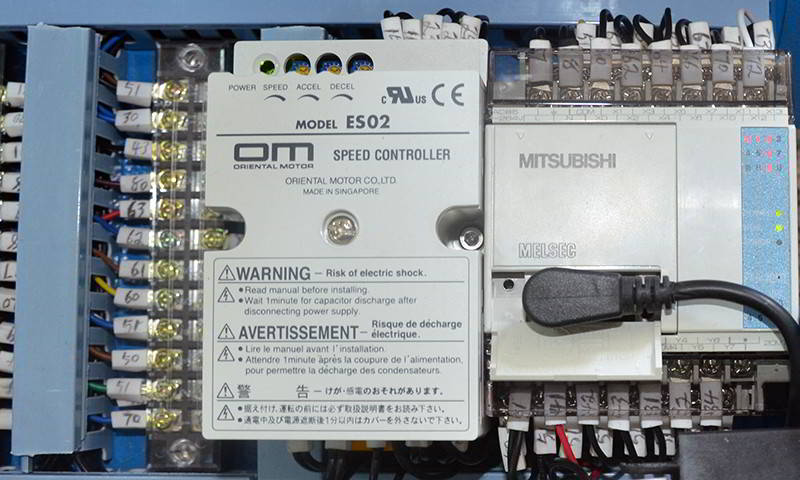

Ultra-high resolution servo motor and ball screw to ensure constant, fast printing speed | Mitsubishi PLC control, man-machine dialogue interface, digital set |
|
|

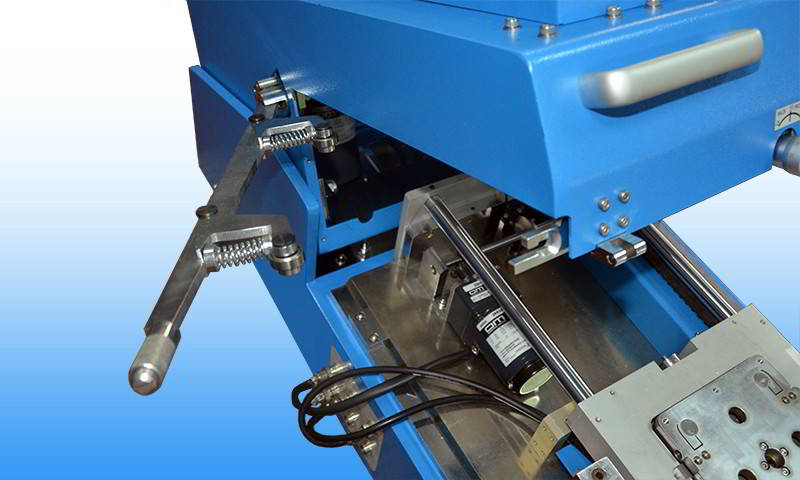

Machine, electric, hydraulic trinity localization way, ensure micron grade positioning | |
|
|

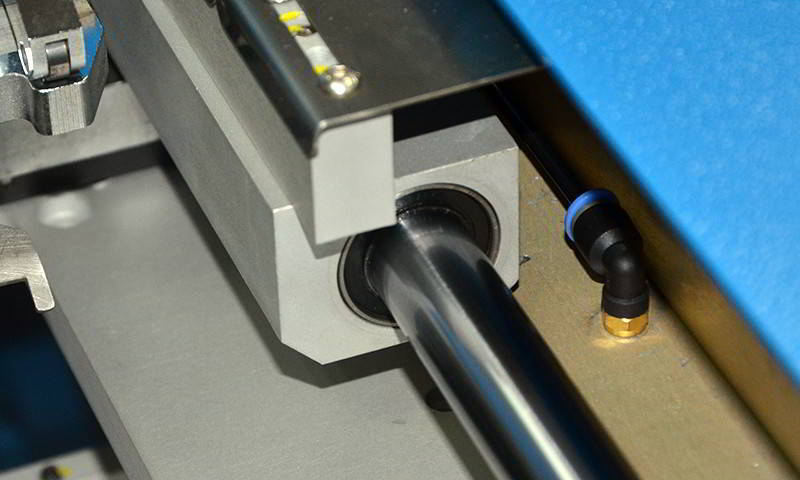

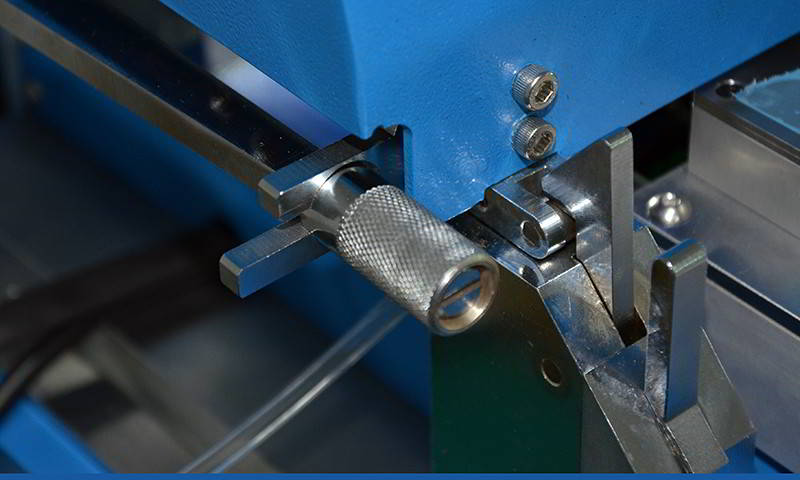

Main pressure adjustment, auxiliary clearance compensation, flexible float scraper, make sure that the pressure balance transfer | |
|
|

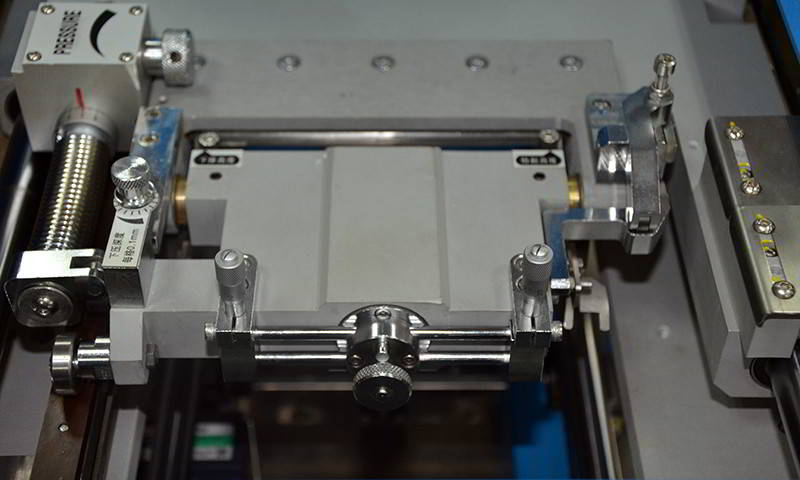

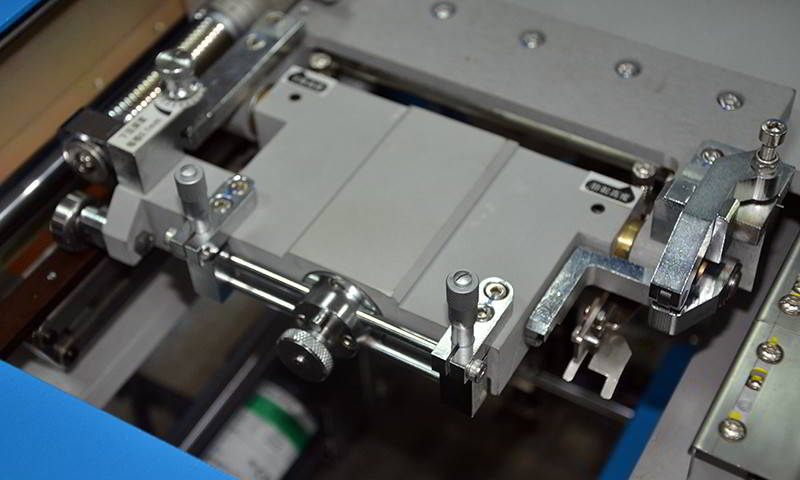

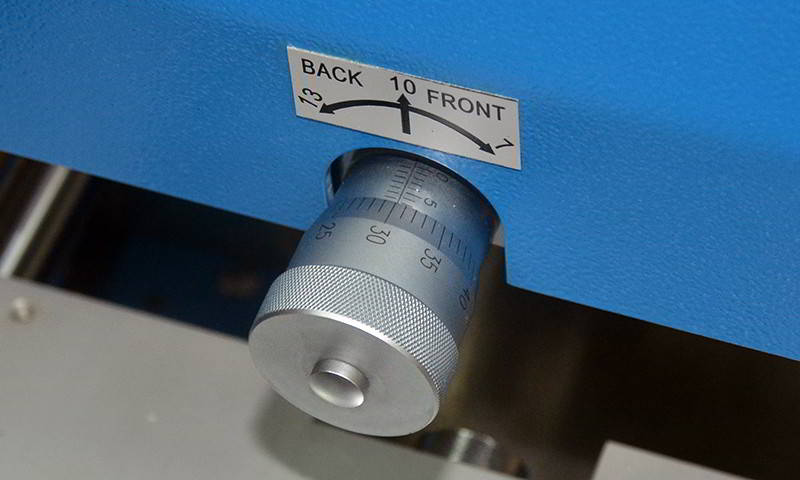

Four degrees of freedom screen frame adjustment and quick change of the net frame humanized design | |
|
|

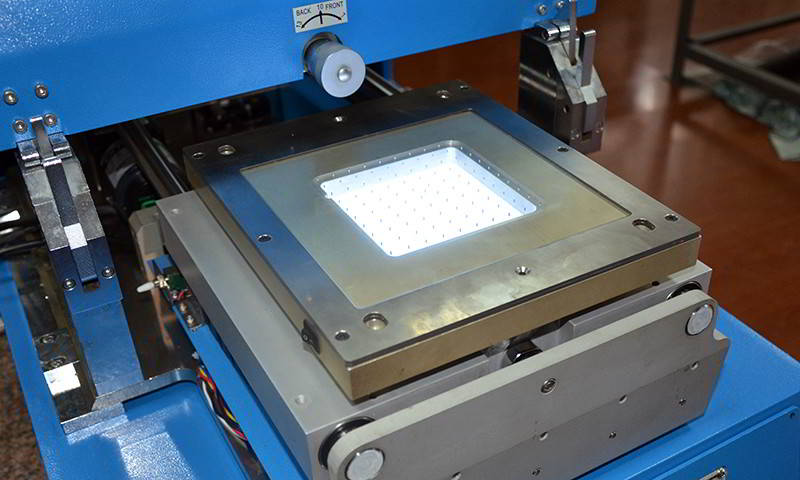

Unique design of via backlight printing platform, through the squeegee printing and vacuum to ensure that the paste can completely cover the via hole | |
| |
Thick Film Screen Printer Series Applications

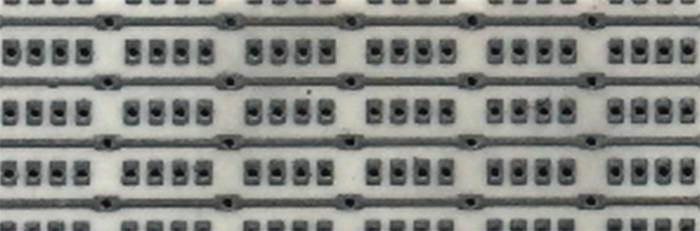

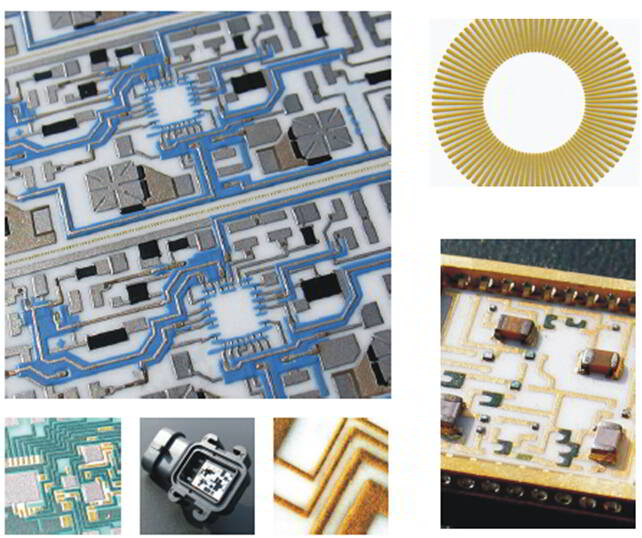

Integrated Circuit | |
| |

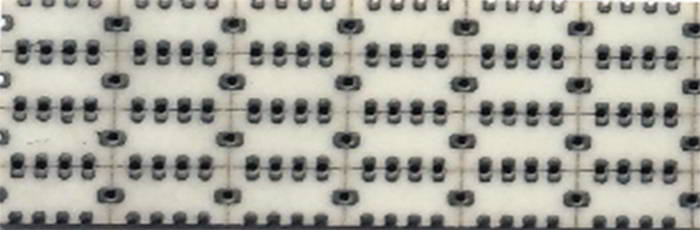

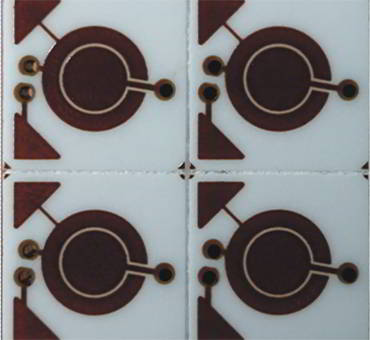

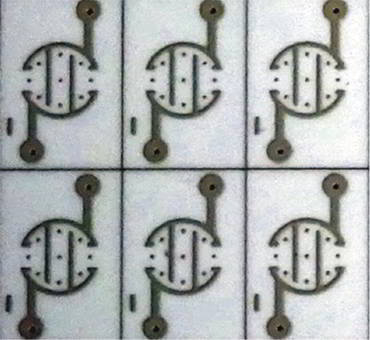

LED PTH Hole Printing | Capacitive Pressure Transducer Printing |
|
|
Top Side of Printing PTH Hole | |
| |
Bottom Side of Printing PTH Hole | |
 | |
Thick Film Screen Printer Series-Specifications | |||
Model | WZ-1202RS | WZ-1206RS | WZ-1206CRS |
Frame Size | 252mm-185mm | 356mm-305mm | |
Maximum PCB Size(X /Y) | 75mmx70mm | 160mmx160mm | |
Print Accuracy | 0.003mm | ||
Silk Screen Adjustable Scope | X +/-0.5mm Y+/-0.5mm Z 0-3mm | ||
Print length | 110mm | 208mm | |
Print Speed | 7-350mm/s (adjusted by touch screen) | ||
Flood Coat Speed | 7-350mm/s (adjusted by touch screen) | ||
Print Pressure | 0-10kgf | ||
Snap off Speed | 0.07-10mm/s | ||
Snap off Route | 0-2mm | ||
Air Knife | Yes | ||
Print Vacuum System | No | Yes | |
Squeegee Length | 50mm/83mm/110mm/137mm/164mm | ||
Print Table Up & Down Route | 15mm | ||
Print Mode | Flood-Print Print-Flood | ||
Power Supply | 1PH 220V 50HZ | ||
Vacuum | Oilless Vacuum Pump(outside) | Miniature 40-watt oil-free vacuum pump(inside) | |
Dimension | 790(L)*370(W)*458(H)mm | 1030(L)*508(W)*522(H)mm | |
Weight | 95kg | 165kg | |
Free accessories as below: | ||||
NO. | ITEM NAME | DESCRIPTION | QUANTITY | UNIT |
1 | Vacuum Pump | TPS-20 | 1 | pcs |
2 | Screen Frame | 252*185*10.5mm | 2 | pcs |
3 | Ink Reset squeegee | 96mm | 2 | pcs |
4 | Plastic squeegee (83mm)&Squeegee Press Piece |
| 1 | pcs |
5 | Squeegee Sectional Fixture |
| 1 | pcs |
6 | Screen Frame Fixation |
| 1 | set |
7 | Power Line |
| 1 | pcs |
8 | foot switch |
| 7 | set |
9 | Allen wrench |
| 1 | pcs |
10 | Micrometer wrench |
| 1 | pcs |
11 | Stainless steel screw |
| 20 | pcs |
12 | Squeegee |
| 5 | set |
13 | Micrormeter |
| 1 | set |
14 | relay(Omron 24V) | Omron 24V | 1 | set |
15 | relay(Omron 220V) | Omron 220V | 1 | set |
16 | Fuses |
| 4 | set |
