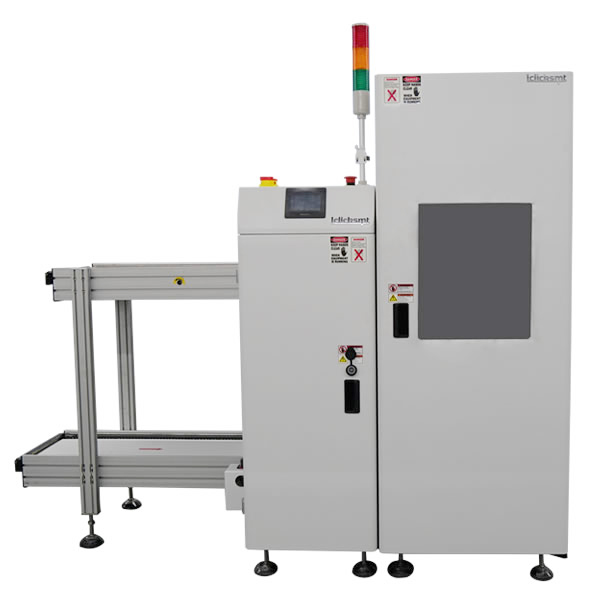

Vaccum and magazine combo loader
The unit loads your production line automatically by pushing PCB's out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
Available Options
Vaccum and magazine combo loader Features
|
● Pannasonic PLC Program control. |
|
● Selectable pitch settings. |
|
● Towerlight display for machine status. |
|
● Binding function of vaccum loader and magazine loader. |
|
● Vaccum loading, Magazine loading and alternated mode selectable. |
|
● SMEMA compatible. |
Vaccum and magazine combo loader Specifications
|
● Transport height: |
910mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Power supply: |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
500VA max. or specify |
|
● Air supply: |
≥6 bar |
|
● Air consumption: |
10 ltr/min max. |
|
● PCB loading time: |
±6 seconds |
|
● Magazine change-over time: |
±30 seconds |
|
● Pitch distance: |
10.20.30.40mm pitch or specify. |
|
● PCB stock capability: |
125mm or specify. |
|
● Total number of magazines: |
* 1 mgazine on the lifter platform. * 1 empty magazine on the upper magazine conveyor * 1 full magazine on the lower magazine conveyor * or specify. |
|
Model |
LDC250M |
LDC330L |
LDC390LL |
LDC460XL |
|
Machine Dimension (L x W x H) |
2050 x 880 x 1600 |
2400 x 1080 x 1600 |
2650 x 1300 x 1600 |
2650 x 1350 x 1600 |
|
Weight |
210kg |
260kg |
310kg |
370kg |
|
PCB length |
50mm - 330mm |
50mm - 445mm |
50mm - 530mm |
50mm - 530mm |
|
PCB width |
50mm - 250mm |
50mm - 330mm |
50mm - 390mm |
50mm - 460mm |
|
PCB Thinckness |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
|
Magazine Dimensions (max.) |
355 x 320 x563 |
460 x 400 x 563 |
535 x 460 x 573 |
535 x 530 x 570 |
|
Fixed rail to front dimension(A) |
340mm |
340mm |
340mm |
340mm |
* Customized is available
Vaccum and magazine combo loader Series Options
|
● Alternative suction cup size. |
|
● Additional magazine capacity. |
| ● Touchscreen instead of button panel. |
|
● Enclosed construction improve level of safety. |
|
● Other options available on request. |
