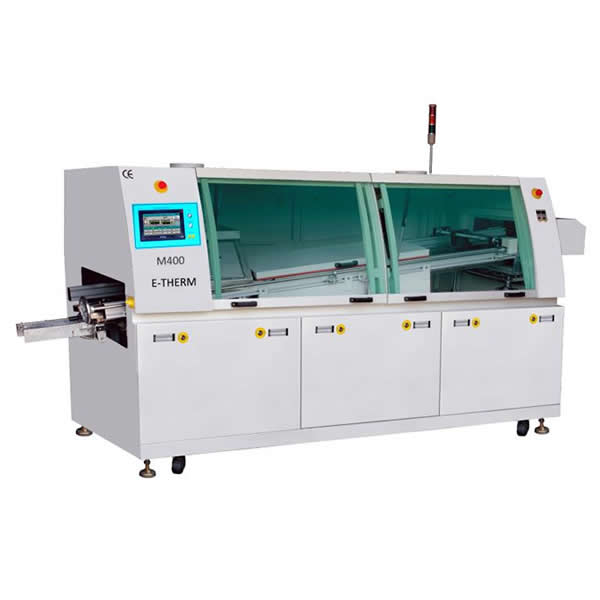

Lead Free Wave Solder Machine M400

init sku time:

M400 is a CE certificated compact Lead Free Wave Solder Machine with inline finger conveyor, stepper driven spraying fluxer, hot air preheat zone & Ti dua wave solder pot.

Available Options

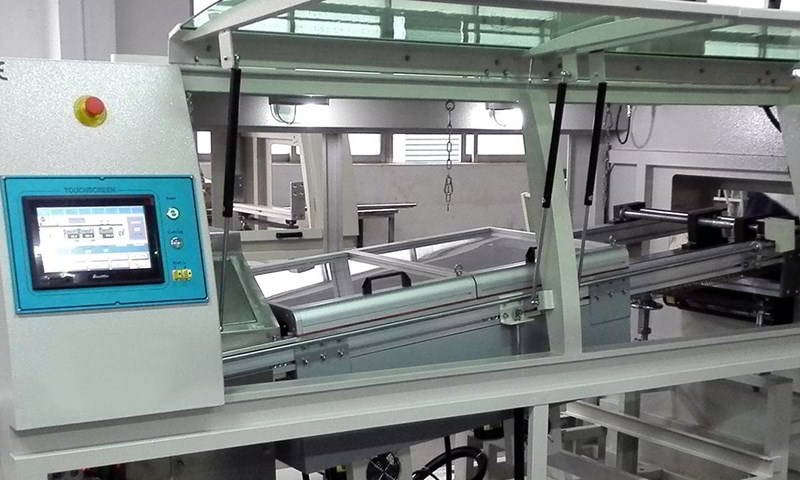

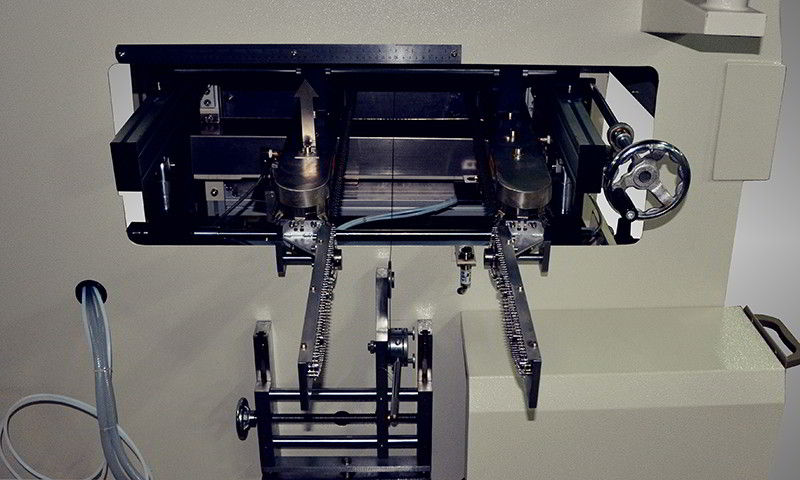

In-loading system

In-loading system

Which can connect with the insertion conveyor directly, no need other connecting conveyor, With rule for width indicator, with angle meter for conveyor angle indicator.

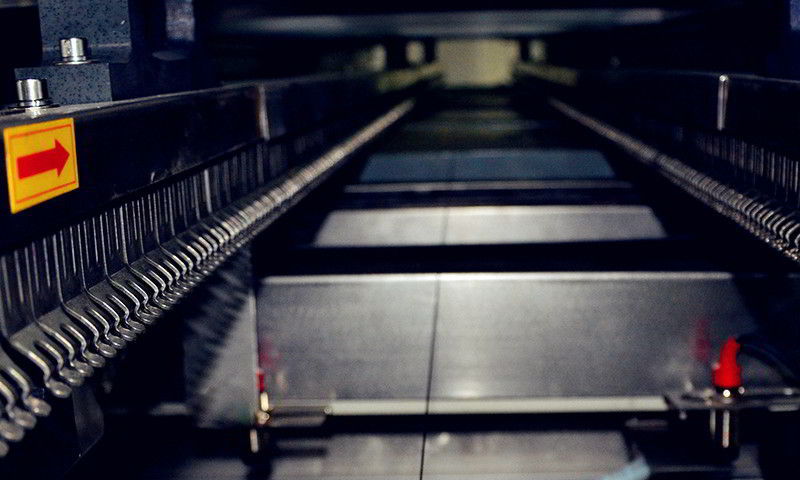

Conveyor system

Conveyor system

Ti fingers. In this machine the same conveyor rail can accommodate for both L finger and Hook finger, customer can choose any of them or mixed them.

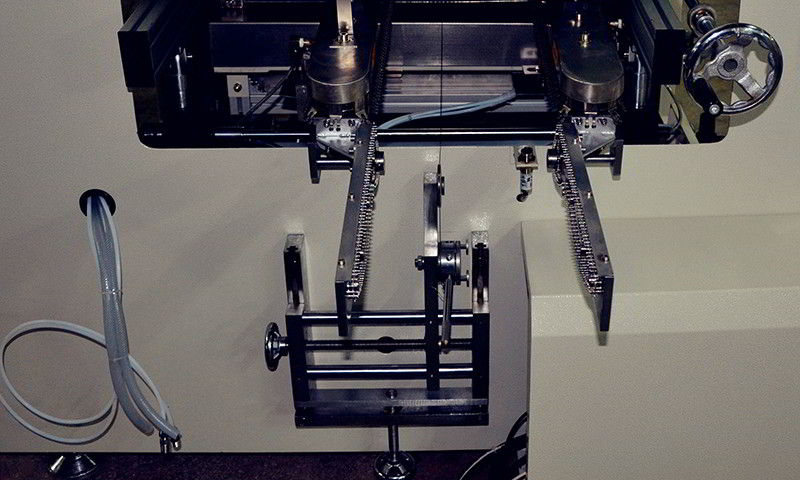

Center support option

Center support option

Optional with center support system, it can support the PCB all through the machine and position adjustable.

Width adjustmen

Width adjustmen

4 group of width adjustment system, grantee the paralizm of the conveyor.

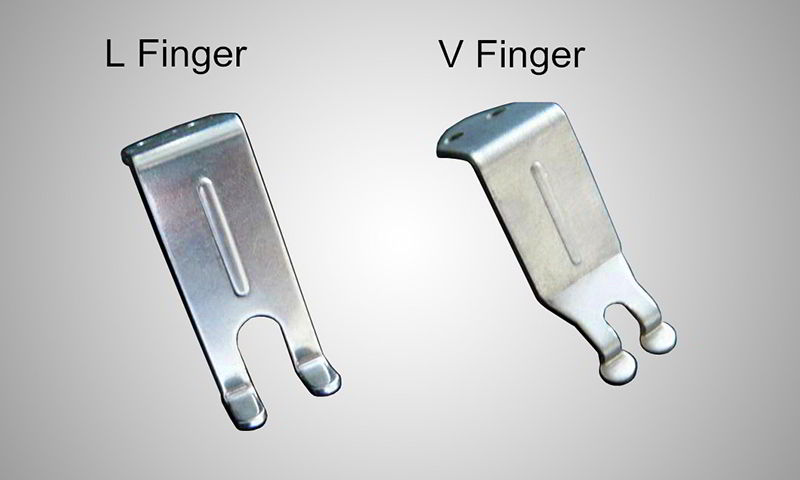

Finger option

Finger option

Optional with L finger or L mixed with V finger.

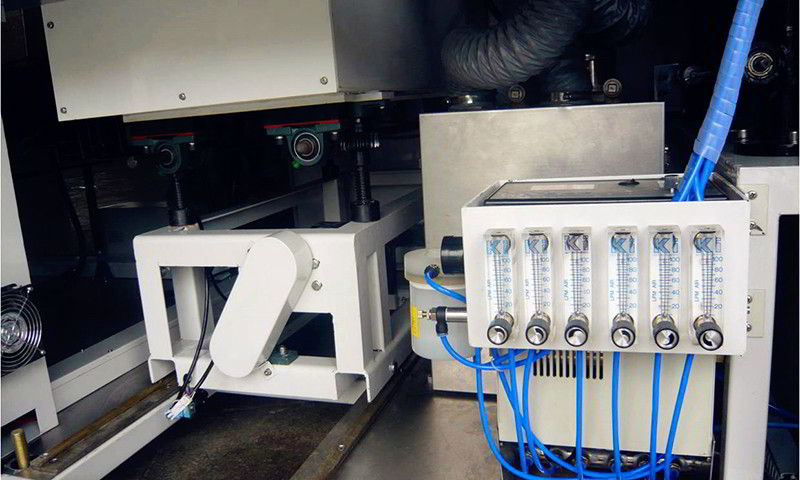

Fluxing sysytem

Fluxing sysytem

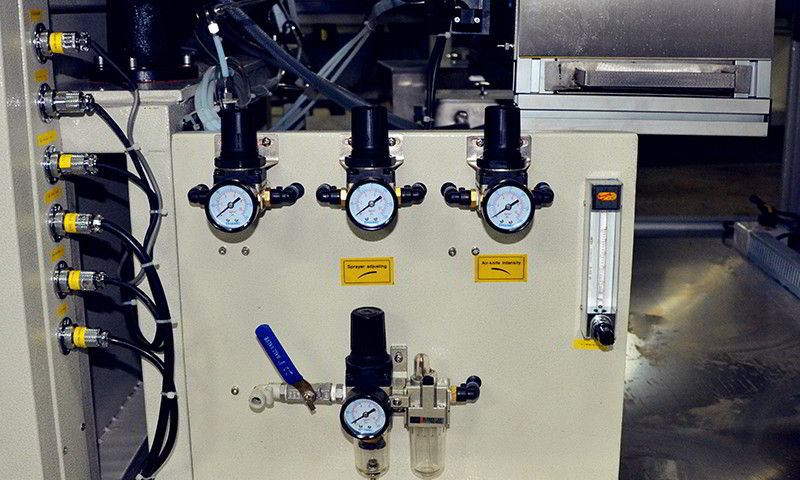

Sprayer's flow, flux shape, automization etc adjustable, so to meet a perfect flux applying performance.

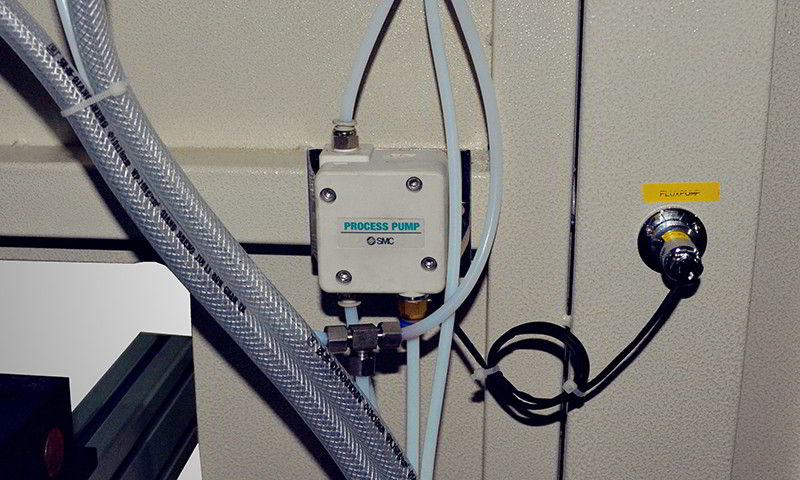

Fluxing pump

Fluxing pump

Flux is adding via a SMC pump automaticlly, save operator's time and job.

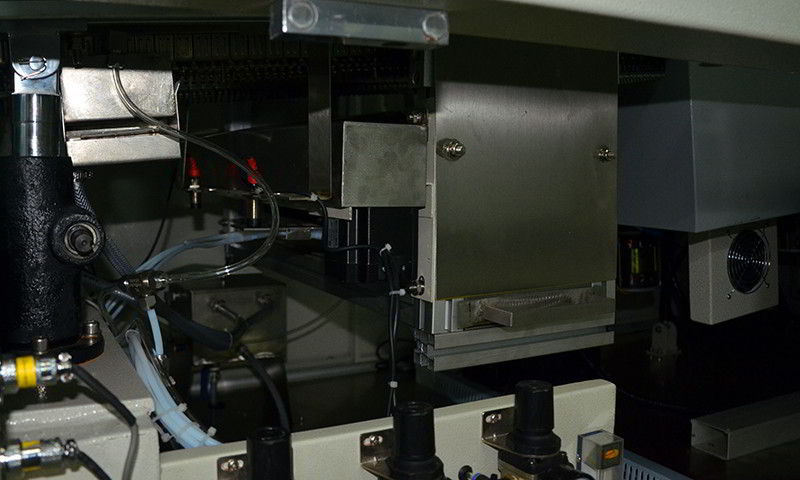

Movement of fluxing system

Movement of fluxing system

Stepper motor/driver, linear rail /slider etc, make sure the spray nozzle moving at needed speed smoothly.

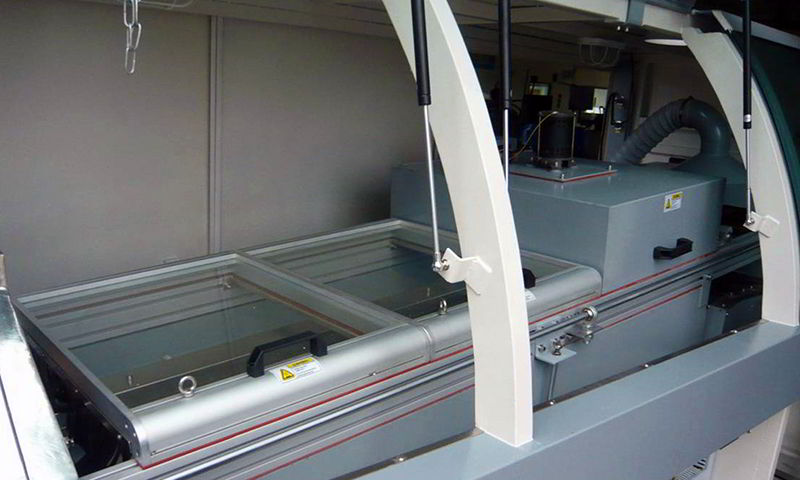

Standard equipped with 2 hot air convection preheating zone

Preheating system

Standard equipped with 3 hot air convection preheating zone at bottom, provide enough heat to active the flux performance.

Preheating option

Preheating option

Optional to add 3rd upper preheating zone, minimize the PCB up/bottom side temeprature difference and reduce the PCB deformation.

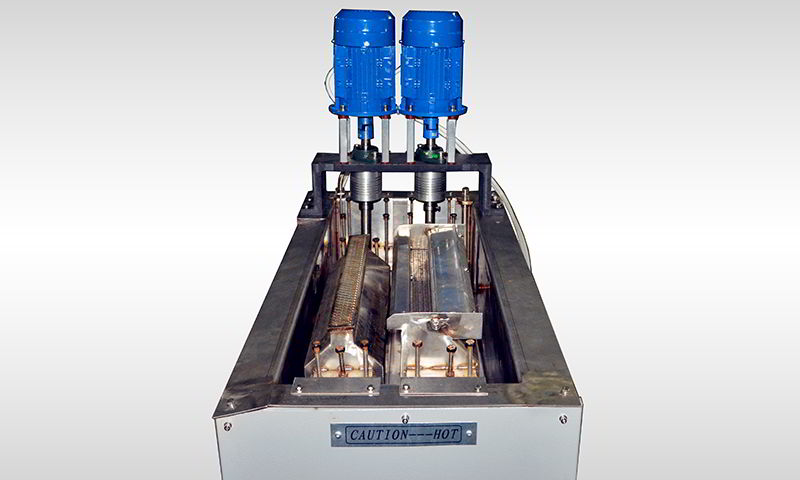

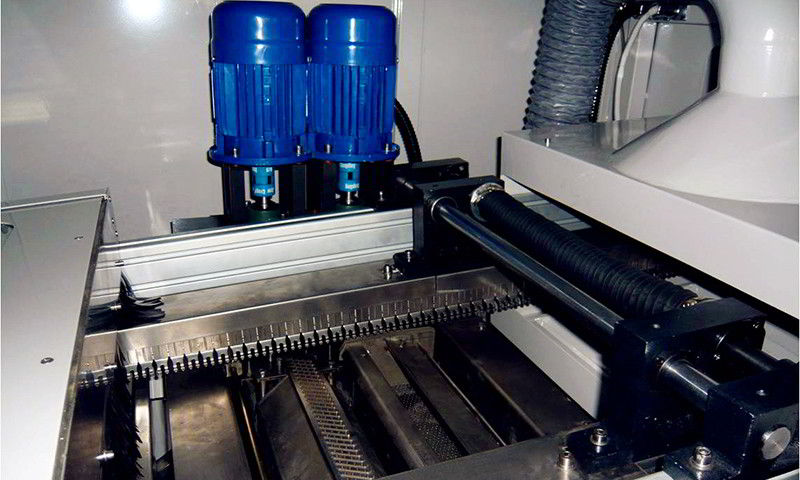

Soldering system

Soldering system

Fully Ti material made solder pot, even for impeller, shaft, nozzle, and bolts. All is Ti and 100% capable for Lead free. Two wave nozzle, one is for turbulent wave and another is for flat wave.And solder pot in & out automaticlly, upper & down manually.

Easy maintanence

Easy maintanence

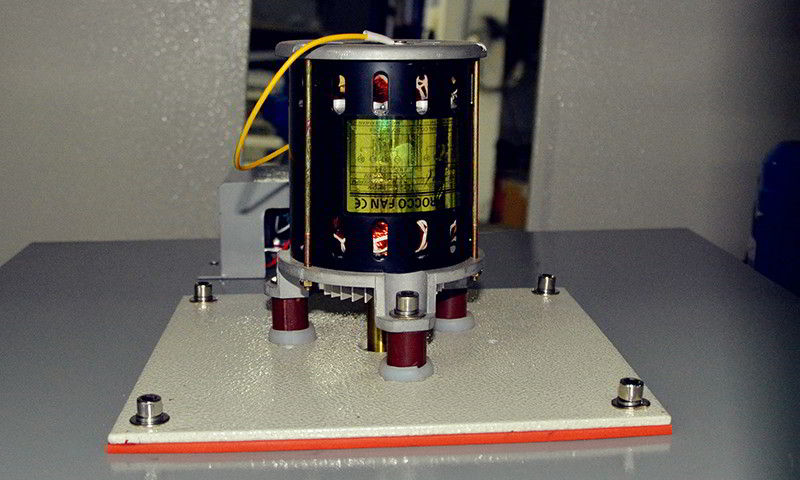

Blower motor can be take out from upper side of machine, easy for maintenance.

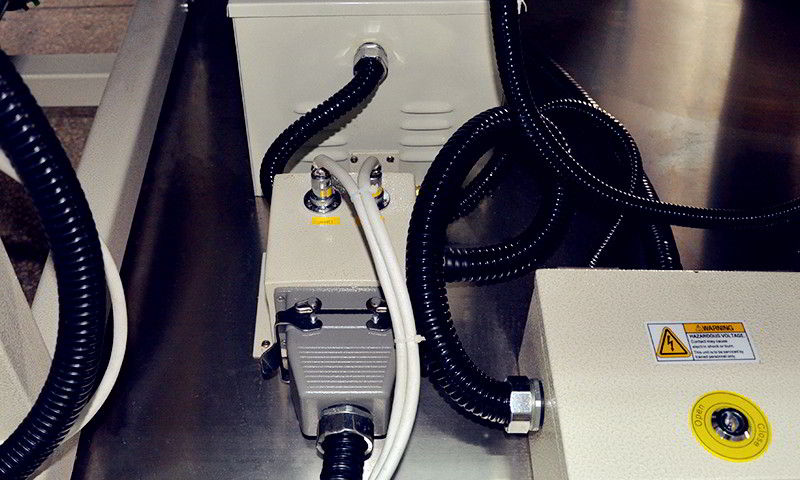

Easy change between leaded and lead free solder pot.

Easy change between leaded and lead free solder pot.

Solder pot is equipped with quick connector and trolley, can easy change between leaded and lead free solder pot.

Nitrogen option

Nitrogen option

Optional with N2 feeding system, enhance the solderbility and reduce solder dross generation.

Package

Package

Dry partical with safty certification used in machine to avoid moisture, Vacuming package for long distance shipping, Plywood case and metal frame for big case.

M400 Lead Free Wave Solder Machine Features

● A new streamline design replaces a conventional right-angled exterior. And the design is based on mechanical aesthetics and practicability, making the maintenance an easy job.

● PLC controller, PC and on-line UPS form a stable,safe and efficient controlling system.

● The software has the functions like PCB counting, temperature setting and editing, PCB parameter menu, and profile testing, alarms an muti-languages conversion. In the meanwhile, the software has make a lots effect about the safety issues just like wave motor running safe temperature etc.

● The one-week timer will provide a amazing function for customer. The operator can edit his work schedule for this wave solder machine weekly. And the machine can turn on automatically to melt the solder before operator come to work. When it’s time to work, the solder has been melt and everything is ready. It will save about 1.5 hours for customer everyday.

● The specially designed guiding rail reduce the deformation caused by heat; After two years working you only need to change the cooper bars instead of change the whole conveyor rails.

● Sprayer droved by stepper motor , the speed can be set on PC. The moving and stopping time will be set in a more precious way.

● The sprayer is made in Japan; it provides perfect atomization performance of the flux.

● Adding flux automatically, there are two sensors on flux tank. When flux is lower than limit, it will switch on the pump to feed flux in automatically. Operator just need to put the whole barrel flux into the flux tank, meanwhile put the sucking tube into the barrel.

● Forced air convection preheat zone control by temperature controller in PID model. The preheat zone will provide enough uniform heat for the PCB.

● 2 individual bottom hot air zone and third upper hot air zone optional, this configuration will provide the greatest preheating effect for soldering.

● Adopt cast iron heater for the solder pot, it’s mounted outside of the solder pot. This new assembling way will prolong the life of the solder pot.

● Dual wave solder. Both wave heights are controlled by transducer. Changing the wave height via adjusting the frequency of power.

● Solder pot is made of 3mm thickness Ti material. Long life warranty.

● High quality B&M wave motor which made in Italian, small noise and more stable.

● Soler pot in & out automatically,upper&down manually. It is easy for customer to change solder pot and conversion between leaded and lead-free.

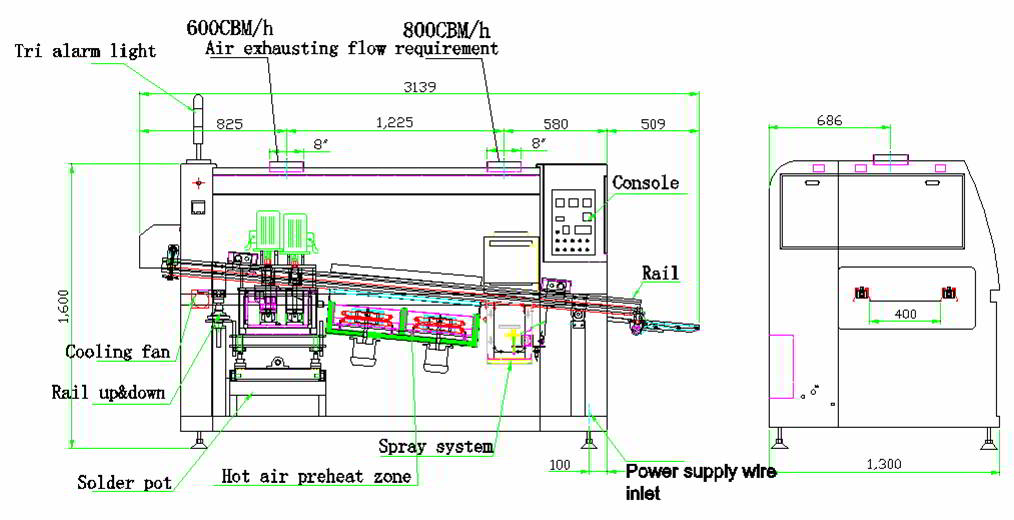

Structual Drawing




M400 - Specifications

 Model

 M400

 PCB width

 50-400MM

 Solder pot capacity

 390kg

 Running power/general power

 7.5KW/22KW

 Machine dimension

 3140(L)*1250(W)*1600(H)

 Net weight

 750KG

 Controlling system

 Touchscreen + PLC

 Conveyor motor

 1Ph 220V , 60W

 Conveyor speed

 200MM-1500MM/Min

 Flux Volume

 6.5 liters

 Alcohol capacity

 4.5 liters

 Conveyor direction

 Left to right

 Spray method

 Stepper motor drive

 Sprayer

 Stainless Steel Spray Nozzle

 Preheating zone

 2 individual bottom preheating zones

 Preheating power

 4kw/zone

 Solder pot material

 Ti

 Solder pot heater

 Cast iron

 Heater power

 1.2KW*5PCS

 Wave number

 dual waves

 Wave type

 Turbulent first wave

 Melting time

  90 minutes

 Solder pot lift up&down

 Manually

 Solder pot in&out

Automatic

 Finger cleaning pump

 1PH 220V 10W

 Finger type

 Dual hook Or L finger

 Finger material

 Ti

 Solder angle

 5-7°

 Air supply

 3-5BAR

 Power supply

 3PH 380V 50HZ

M400 Lead Free Wave Solder Machine Include

1 PC. M400 Lead Free Wave Solder Machine with:

 ◎ Lead free wave solder machine

 ◎ Touchscreen and PLC control system

 ◎ 2 individual  preheating zones

 ◎ Titanium alloy dual wave solder pot

 ◎ Titanium alloy finger conveying system.

 ◎ Machine dimension: 4260(L)*1495(W)*1725(H)

 ◎ Spraying system driven by step motor and PLC controller

 ◎ Machine weight : 1500KGS

 ◎ 1 year parts warranty

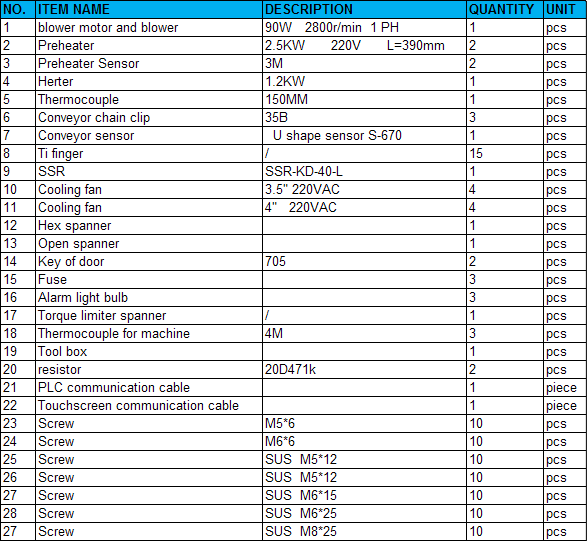

Plenty Free accessories:

B400 Parts.PNG
